Foxconn Intel Atom D525 NetBox nT525 Mini barebone Kit w/ WiFi and HDMI

Mouse over images to see enlarged version



Click to see supersized image


What's in the box?

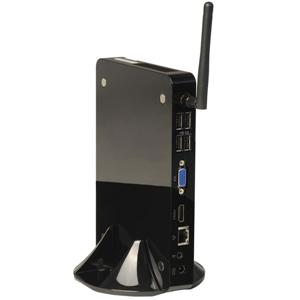

Foxconn NetBox-nT525 Barebone Kit with Intel® Atom™ D525 (1.8GHz, dual-core, Hyper-Threading Technology) processor, HDMI output and 802.11b/g. Ultra-compact design fits at home in any environment. Supports 1 x 2.5" hard drive (or SSD) and up to 2GB of DDR2 memory. VESA mounting bracket is included to mount the system unobtrusively to the back of a monitor (75 x 75mm and 100 x 100mm holes).

Barebone kit: To complete this system, you will need System Memory, Hard Drive and Operating System software

Included System Components
Basic System Components
  • Foxconn NetBox-nT525 Barebone Kit
  • AC-DC Adapter
  • VESA Mounting Bracket (to attach system to the back of a monitor)
  • All product manuals and documentation
Memory & Storage
  • No memory installed, please see below for options
  • No hard drive installed, please see below for options

Foxconn NetBox-nT525 Mini Barebone Kit
Model No. nT525-0H0W-B-A-NA
Embedded Processor Intel® Atom™ D525 1.8GHz
Dual-Core
Intel® Hyper-Threading Technology
1MB Cache
32/64-bit
Memory Supports up to 2GB maximum memory (1 slot) 800/667MHz
Non-ECC
Unbuffered
200-pin DDR2 SODIMM
Hard Drive Supports 1 x 2.5" SATA II Hard Drive (or SSD)
Graphics Interface Intel® GMA
VGA & HDMI ports
1920 x 1200 maximum resolution (VGA)
1360 x 768 maximum resolution (HDMI 720p)
Audio 8 Channel (7.1) S/PDIF
Stereo Analog
Realtek ALC888S HD Audio CODEC
Networking Gigabit LAN (10/100/1000 Mbps)
802.11 b/g WIFI
Atheros AR8131M
I/O Ports Front I/O:
1x Headphone/Stereo Audio Jack
1x Microphone & S/PDIF-In Jack
1x 5-in-1 Multi-Card Reader (SD/SDHC/MS/MS Pro/MMC)
2x USB 2.0 Ports
1x WIFI Status LED
1x System Status LED
1x HDD Status LED
1x Suspend Button
1x Power Button w/ LED

Rear I/O:
1x WIFI Antenna connector
4x USB 2.0 Ports
1x VGA Port
1x HDMI Port
1x RJ-45 Ethernet Port
1x Line Out and S/PDIF-Out Port (3.5mm jack)
1x DC-in
Power 19V 65W AC-DC Adapter
Dimensions 7.5" x 5.3" x 0.98"
190mm x 135mm x 25mm


Optional Add-Ons
To purchase any of the options listed here at no additional shipping charge and no installation fee, please send us a message.

Wireless Remote Control
Picture Price Description
$9.95 Wireless Media Center Remote Control with USB IR Receiver
System Memory
Picture Price Memory Options
$29.95 1GB DDR2 memory (1 x 1GB = 1GB Total)
$49.95 2GB DDR2 memory (1 x 2GB = 2GB Total)
2.5" SATA Storage Drive
Picture Price Drive Capacity
$21.95 Compact Flash to 2.5" SATA disk adapter (also features USB 2.0 interface for external use)
Industrial SLC Compact Flash disks available: 4GB, 8GB, 16GB
$44.95 250GB HDD
$59.95 500GB HDD
$109.95 750GB HDD
$99.95 30GB (Solid State Flash Drive)
$149.95 64GB (Solid State Flash Drive)
$249.95 128GB (Solid State Flash Drive)

International Shipping Details
  • Import taxes, customs duties and all associated fees during importation will be the responsibility of the purchaser.
  • Priority Mail International packages generally take 6-11 business days for delivery and Express Mail International packages will take 6 business days for delivery.
  • Please note that USPS does NOT guarantee delivery dates for their international services so we cannot give you an exact date for delivery and you may receive your package outside of the estimated 6-11 days (Priority Mail) or 6 days (Express Mail).
  • No transit-time estimates are available for USPS First Class Mail International packages and no tracking information is available.
  • If you have any time constraints, please do not ship via USPS First Class Mail International--ship Priority Mail or Express Mail.
  • If you require tracking information, select USPS Express Mail International.
