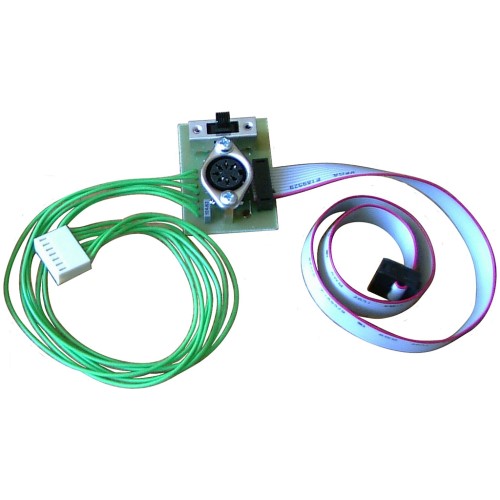

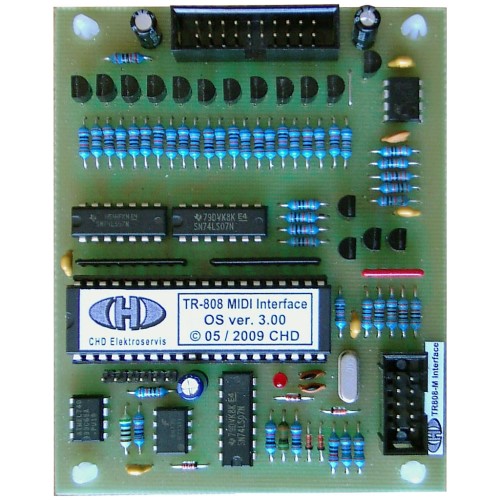

CHD Elektroservis TR808-M - Roland TR-808 MIDI Interface

Roland TR-808 Einbau MIDI Interface - neue Version 3.2 - mit Features, die bisher noch nie in einem TR-808 MIDI Interface verfügbar waren.

The TR-808 MIDI retrofit enables your Roland TR-808 to be synchronized with other MIDI devices and work like polyphonic velocity sensitive MIDI drum expander. More over all original features of the TR-808 are not changed.

It offers features never before available on any MIDI interface for TR-808.

Installation of all MIDI interface parts is very easy and non-destructive - it is not necessary to drill any holes in the vintage instrument. All changes can be replaced without visible changes. The optical appearance of the TR-808 remains the same after the installation and it is possible to remove the interface at any time.

Features:

Roland TR-808 MIDI Interface

Functions of sequencer and triggering method of instruments of TR-808 are controlled via MIDI Program Change commands

Program map can be fully defined by user

Sequencer of TR-808 can be synchronized by internal tempo generator or by MIDI clock.

Start / Stop (transport functions) can be controlled by panel button or by "Start", "Stop" and "Continue" MIDI transport commands or both ways simultaneously.

Tone generators of TR-808 can be triggered with internal sequencer, with MIDI notes or both ways simultaneously.

Response of tone generators to "Velocity" of Note-On MIDI commands is fully dynamic.

121 MIDI notes (0 to 120) are acceptable. It can be assigned to each of them independently:

- any of TR-808 tone generator (or none generator)

- basic signal level and dynamic range (resolution up to 126 steps) of assigned tone generator

CM/GM/GS/XG drum map is factory predefined.

Number of MIDI channel for MIDI commands receiving is programmable by user, channel 10 is factory predefined.

MIDI interface can be turned off, TR-808 then works exactly as without installed interface - DIN-SYNC In/Out control stays fully functional.

Easy and non-destructive installation into TR-808.
