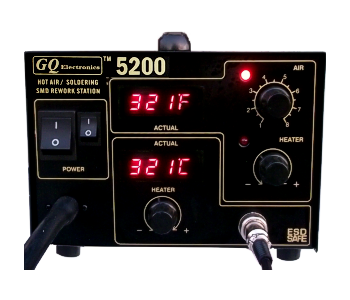

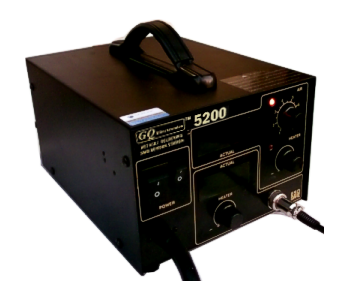

This is a GQ brand (USA), new GQ 5200 SMD Rework Station 2-in-1 System from manufacturer.

The only rework station has independent Celsius and Fahrenheit display. It is designed by GQ Electronics LLC, USA.

1. Wide range of temperature and airflow adjustment.
2. Cool air will start to blow continuously after using thus prolonging the usage life of the heating system.
3. Two real time digital temperature monitors for actual temperature on hot air and iron.
4. Independent Celsius and Fahrenheit display control. User can select any channel any unit temperature display.

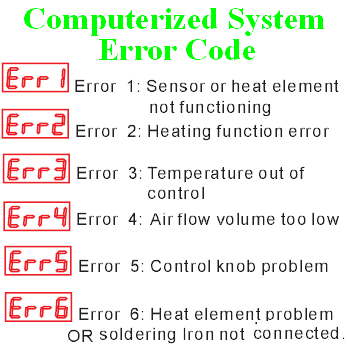

5. Micro-controller controlled proactive system displays industrial standard error and warning code.
6. Best suited for repairing QFP, SOP, PLCC,BGA and SOJ components.





Power Input : 110V/120V AC
Power Consumption: 270W
Temperature Range: 200-480 degrees Celsius (390 - 900degree Fahrenheit)
Heating Element:Metal Heating Core
Pump/Motor Type: Diaphragm Pump
Air Capacity: 0.3~24 L /min (max)
Station Dimensions(WxHxD): 7.5" x 5.4" x 9.6", 187mm x 135mm x 245 mm
Weight: 11 lb (4.7kg)

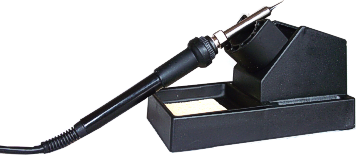

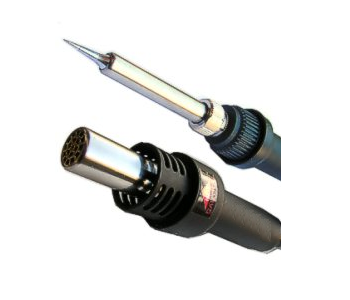

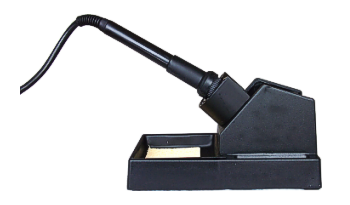

Station with hot air gun, soldering iron, Z001 Hot air gun holder,soldering iron holder,Power cord.

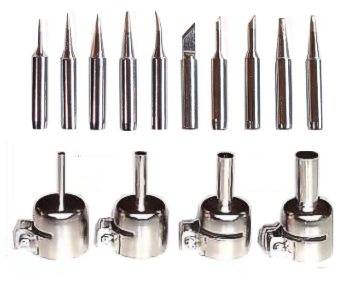

FREE four size air nozzles:

A1125 2.5mm (0.09")

A1130 4.4mm (0.17")

A1196 7.0mm (0.27")

A1197 9.0mm (0.35")

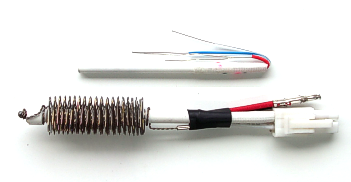

FREE one iron heat element for backup replacement

FREE one hot air heat element for backup replacement

FREE ten size/shape iron tips for different applications

900M-T-I

900M-T-IS

900M-T-K

900M-T-B

900M-T-1C

900M-T-2C

900M-T-3C

900M-T-0.8D

900M-T-1.6D

900M-T-2.4D

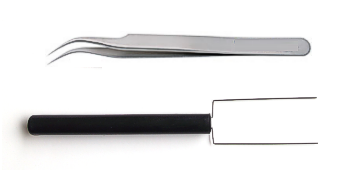

FREE one Anti-Magnetic tweezers for small SMD component handling.

FREE one IC remove tool (popper) for big IC SMD component removing




We ship the item via USP Ground . (We reserve option to ship with other carriers if needed, Such as USPS, Fedex)

WE WILL SHIP TO WORLDWIDE addresses. Please email us within EBAY to receive the shipping quotes!

We do not ship to P.O. Box



One year factory warranty.

The service will be performed by GQ USA service center. Fast and feasible.




GQ Electronics LLC is located in Seattle WA, USA. The company is focused on design & develop true low cost equipment solution for device programming, electronics development, radiation detection, electronics lab, auto mobile field service and many other electronics related applications.

Please contact us for any questions and assistance.
