Kingspec 2.5" 64GB MLC SSD IDE PATA Solid State Drive

Feature

We Promise

•Originally produced.
•TWO-YEAR warranty provided.
•All series of KingSpec SSDs available.
•Peofessional agent with authorization.

64GB MLC SSD

Kingspec 2.5'' 64GB IDE PATA MLC SSD Solid State Drive.

No mechanical failure

They will be not damaged even suffer strong shock.

Quick boot-up

Fast Sustained Read up to 65MB/S and Sustained Write up to 47MB/S.

Energy conservation

SSD provide improved overall system responsiveness while consuming much less power.

•Brand New KingSpec 2.5'' IDE 64GB MLC SSD.
•Quick boot-up: no dynamo rotary process, the average seek time of KingSpec SSD is only 0.2 ms, much faster than HDD which arrives 1 to 15 ms.
•Sustained Read up to 65MB/S and Sustained Write up to 47MB/S.
•Free noise: SSDs' working decibel is 0 and providing you a cooler and quieter platform because they haven't mechanical motor and air fan.
•No mechanical failure: there are no moving parts in SSDs and therefore the risk of mechanical failure is near zero.
•Energy conservation: SSD provide improved overall system responsiveness while consuming much less power
•Wide working temperature: -15℃ - 70℃ and the SSD of technical grade can reach to -40℃ - 85℃ .
•Excellent shockproof ability: SSDs are much stronger than traditional HDD, they will not be damaged even suffer strong shock.
•Optimized by the windows 7: System will forbid using of automatic disk fragment cleaning in order to extend the write and read endurance.
•Not affected by X radial.
•Light weight: this KingSpec 2.5'' IDE 64GB MLC SSD only 65g.

Note

If you want to know whether the SSD can work with your PC, please feel free to tell us your original hard disk model number!

The way to check your original hard disk model: Check it in the "Computer" --"Attribute"--"Device Manager"--"Disk Drive".

* TWO YEARS WARRANTY: One month guarantee for replacement, and two years guarantee period

Please note that this SSD can NOT fit for Panasonic CF-Series laptop and desktop because of the compatibility

Tech specs

General

Form factor:: 2.5"
interface:: IDE44

Performance

Capacity(GB):: 64GB
Sustained Read:: 65MB/S
Sustained Write:: 47MB/S
Random IOPS: 6325
Average Access time:: 0.2ms

Storage Media

NAND Flash:: MLC(Test Flash:K9GAG08U0M)

Power Consumption

input Voltage:: 5V± 5%
Idle:: 0.7W
Active: 1.8W

Physical Dimensions & Weight

Height(mm):: 9.5± 0.25
Width(mm):: 69.8± 0.25
Length(mm):: 100.2± 0.25
Weight(g):: 70

Reliability& Endurance

Write endurance:: 8years@100gbytes write and erase per day at 32GB
Read endurance:: unlimited
Wear-Leveling Algorithm:: Dynamic and static wear-leveling
Data Retention:: 10years at 25ºC
MTBF:: 1,000,000hours
ECC:: Supports BCH ECC 8bits or 15bits in 512 bytes
Bad Block Management:: Auto Bad Block Management in system

Environment

Operating Temperature:: 0～70ºC
Non-operating Temperature:: -45～85ºC
Shock:: 2,000G(@0.3ms half sine wave)
Vibration:: 20G(40-2000HZ)
Humidity:: 5-95%

Testing Platform

Intel Celeron 336 2.80GHz，DDR2 PC2-5300 512MB×2pcs single channel RAM， VIA VT8237A VIA P4M900 Chipset，Microsoft Windows XP Professional SP2

Testing Software

HDBench3.4.0.3, IOMeter 2006.07.27

What's in

1 x KINGSPEC 2.5" IDE PATA SSD MLC 64GB

We still have many kinds of Kingspec SSD products, please feel free to browse.

Kingspec MLC SSD Series

Product series	Product Model	Capacity	Performance		Compatible Models
Product series	Product Model	Capacity	Sustained Read	Sustained Write	Compatible Models
1.8’’IDE/PATA Interface	KSD-PA18.1-016MJ	16GB	55MB/S	50MB/S	Just for IBM X40/X41/X41T,It will occur “2010 error” in IBM X41/X41T, but it doesn’t affect your system operation.
	KSD-PA18.1-032MJ	32GB	60 MB/S	49 MB/S
	KSD-PA18.1-064MJ	64GB	65MB/S	50 MB/S
	KSD-PA18.1-128MJ	128GB	65 MB/S	50 MB/S

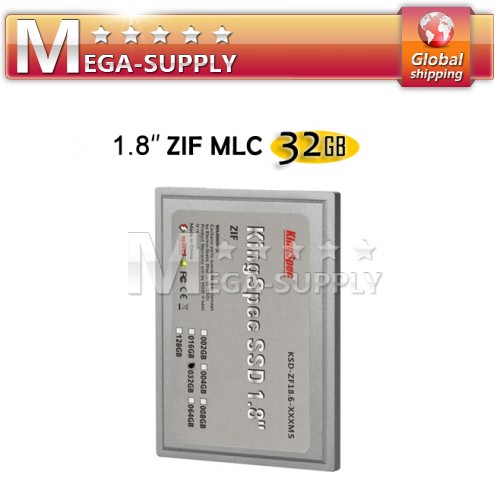

1.8’’ZIF Interface	KSD-ZF18.1-032MS	32GB	70 MB/S	38 MB/S	SONY: UX Series APPLE AIR GEN 1The most of UMPC which interface are 1.8’’ ZIF.
	KSD-ZF18.1-064MS	64GB	70 MB/S	45 MB/S
	KSD-ZF18.1-128MS	128GB	70 MB/S	45 MB/S
1.8’’ Micro SATA Interface	KSD-MS18.1-032MJ	32GB	135 MB/S	89 MB/S	ThinkPad: X300/X301/T400S SONY: TT HP: 2530P DELL: E4300
	KSD-MS18.1-032MJ	32GB	135 MB/S	89 MB/S
	KSD-MS18.1-064MJ	64GB	140 MB/S	89 MB/S
	KSD-MS18.1-128MJ	128GB	145 MB/S	90 MB/S
1.8’’ CF SSD	KSD-CF18.1-016MJ	16GB	55 MB/S	50 MB/S	SONY:VaioX505,UX,PCG-U101,R100Portege Toshiba:2000,SS2000M,P2010,R100,R200,Libretto U100 Fujitsu:P7230 P7120,P1610,FMV-BIBLO,T70 HP NC2400 IPod: PHOTO/U2

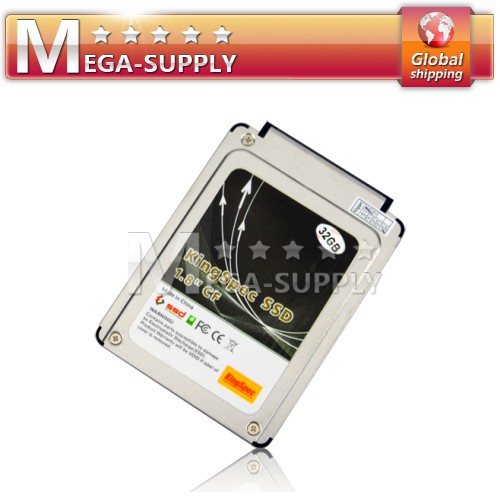

	KSD-CF18.1-032MJ	32GB	66 MB/S	49 MB/S
	KSD-CF18.1-064MJ	64GB	66 MB/S	50 MB/S
	KSD-CF18.1-128MJ	128GB	66 MB/S	52 MB/S
2.5’’ IDE/PATA Interface	KSD-PA25.1-032MS	32GB	50 MB/S	30 MB/S	Old model Desktop or Laptop which interface is 2.5’’ IDE/PATA
	KSD-PA25.1-064MS	64GB	66 MB/S	35 MB/S
	KSD-PA25.1-128MS	128GB	72 MB/S	45 MB/S

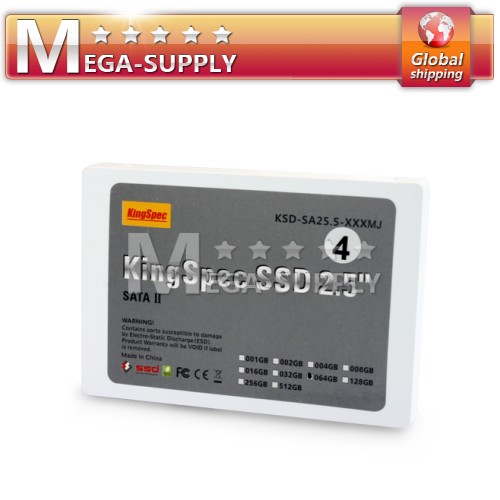

2.5’’ SATA Interface	KSD-SA25.11-032MJ 4CH	32GB	125 MB/S	40 MB/S	New model Desktop or Laptop which interface is 2.5’’ SATA
	KSD-SA25.1-032MJ 8CH	32GB	168 MB/S	96 MB/S
	KSD-SA25.1-064MJ	64GB	170 MB/S	99 MB/S
	KSD-SA25.1-128MJ	128GB	157 MB/S	98 MB/S

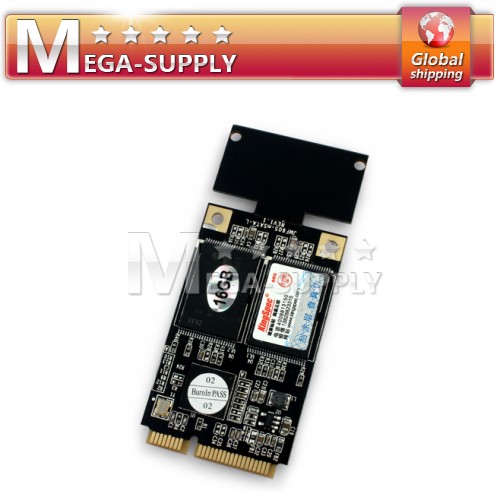

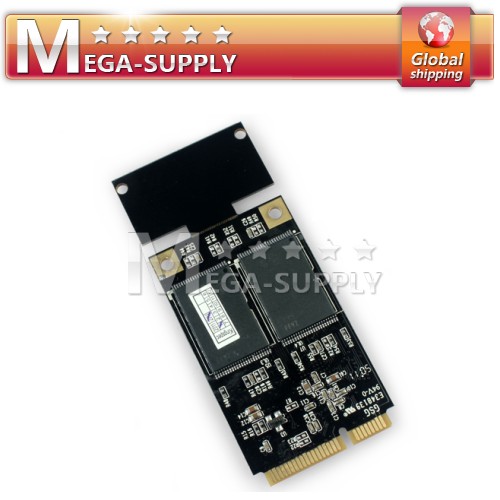

MINI PCIE SATA	KSD-SMP.1-016MJ	16GB	90 MB/S	30 MB/S	ASUS EPC900A/901/S101
	KSD-SMP.1-032MJ	32GB	96 MB/S	53 MB/S
	KSD-SMP.1-064MJ	64GB	96 MB/S	53 MB/S

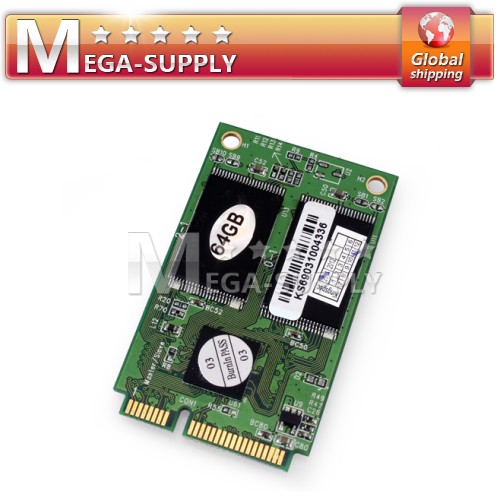

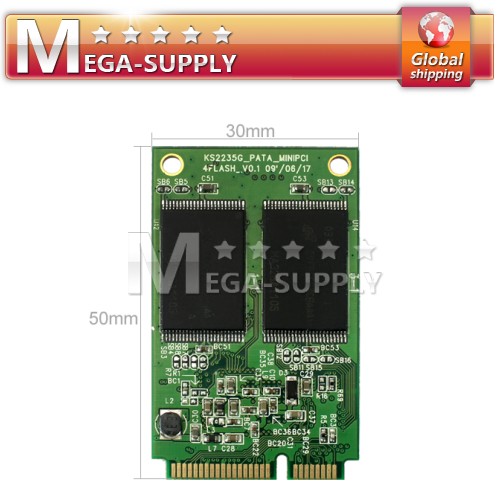

MINI PCIE IDE/PATA	KSD-PMP.15-016MS	16GB	66 MB/S	30 MB/S	DELL MINI 9
	KSD-PMP.15-032MS	32GB	65 MB/S	32 MB/S
	KSD-PMP.15-064MJ	64GB	71 MB/S	39 MB/S
High Speed USB SSD	KSD-USB.1-008MJ	8GB	19 MB/S	13 MB/S	ALL Laptop
	KSD-USB.1-016MJ	16GB	33 MB/S	24 MB/S
	KSD-USB.1-032MJ	32GB	33 MB/S	24 MB/S
	KSD-USB.1-064MJ	64GB	35 MB/S	25 MB/S

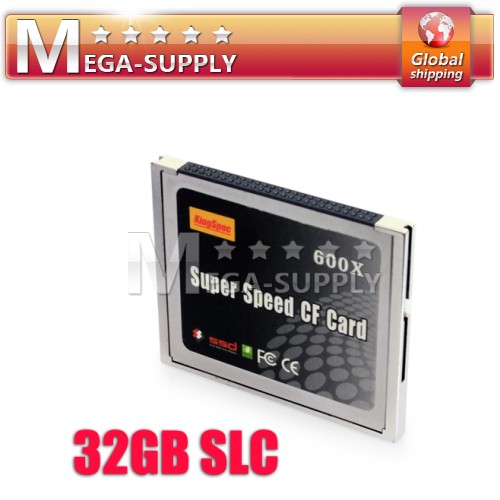

High Speed CF CARD	KCF-PA.1-016MS 400X	16GB	79 MB/S	25 MB/S	Digital Camera, Laptop

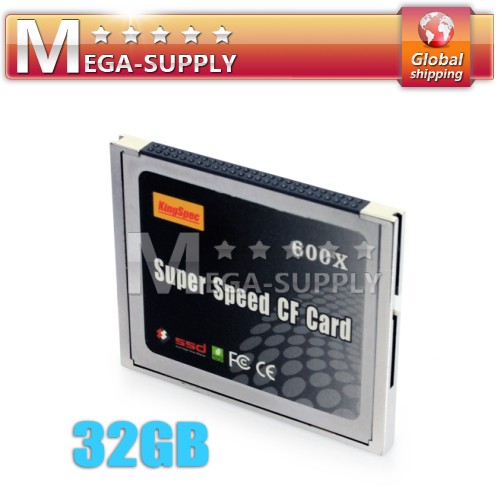

	KCF-PA.1-032MS 600X	32GB	80 MB/S	48 MB/S
	KCF-PA.1-064MS 600X	64GB	81 MB/S	42 MB/S

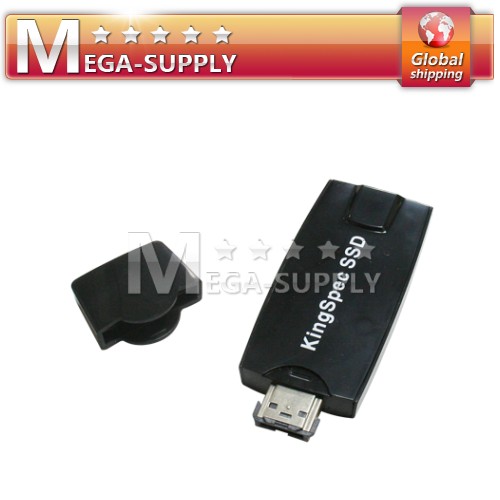

E-SATA USB SSD	KSD-ESA.1-008MJ	8GB	38 MB/S	18 MB/S	Laptop
	KSD-ESA.1-016MJ	16GB	75 MB/S	25 MB/S
	KSD-ESA.1-032MJ	32GB	90 MB/S	30 MB/S
	KSD-ESA.1-064MJ	64GB	96 MB/S	53 MB/S

Kingspec SLC SSD Series

Product series	Product Model	Capacity	Performance		Compatible Models
Product series	Product Model	Capacity	Sustained Read	Sustained Write	Compatible Models

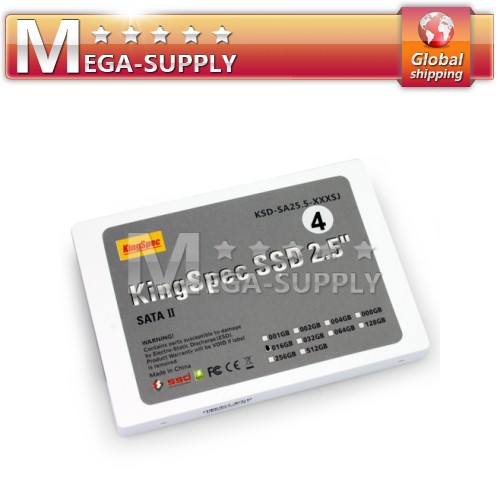

2.5″ SATA Interface	KSD-SA25.1-016SJ	16GB	139MB/S	109MB/S	New model Desktop or Laptop which interface is 2.5″ SATA
	KSD-SA25.1-032SJ	32GB	139MB/S	130MB/S
	KSD-SA25.1-064SJ	64GB	145MB/S	115MB/S

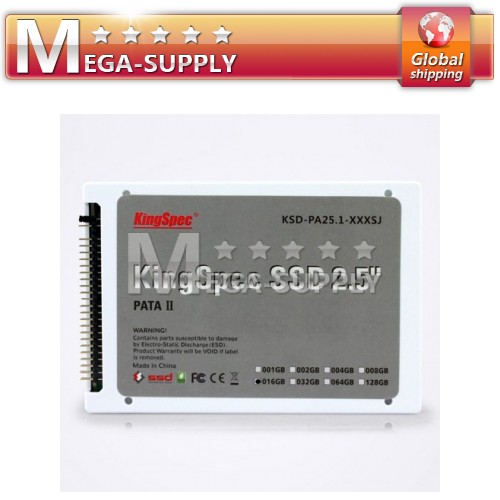

2.5″ PATA IDE Interface	KSD-PA25.1-016SS	16GB	70MB/S	67MB/S	Old model Desktop or Laptop which interface is 2.5’’ IDE/PATA

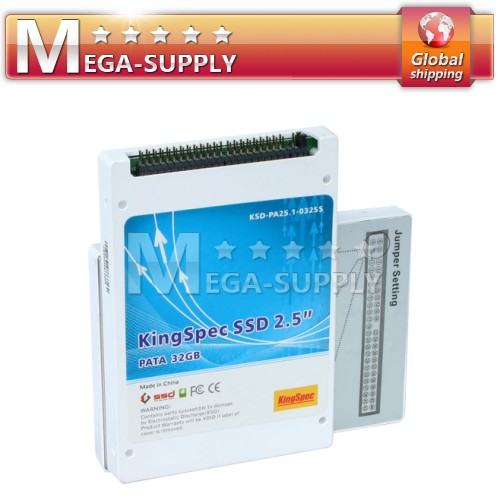

	KSD-PA25.1-032SS	32GB	72MB/S	75MB/S
	KSD-PA25.1-064SS	64GB	73MB/S	78MB/S

If you don't confirm whether the SSD product is compatible with your PC or not, or have any other question, please contact us and tell us your laptop and original hard drive models, we will response to you ASAP!!!!

1 x KINGSPEC 2.5" IDE PATA SSD MLC 64GB
