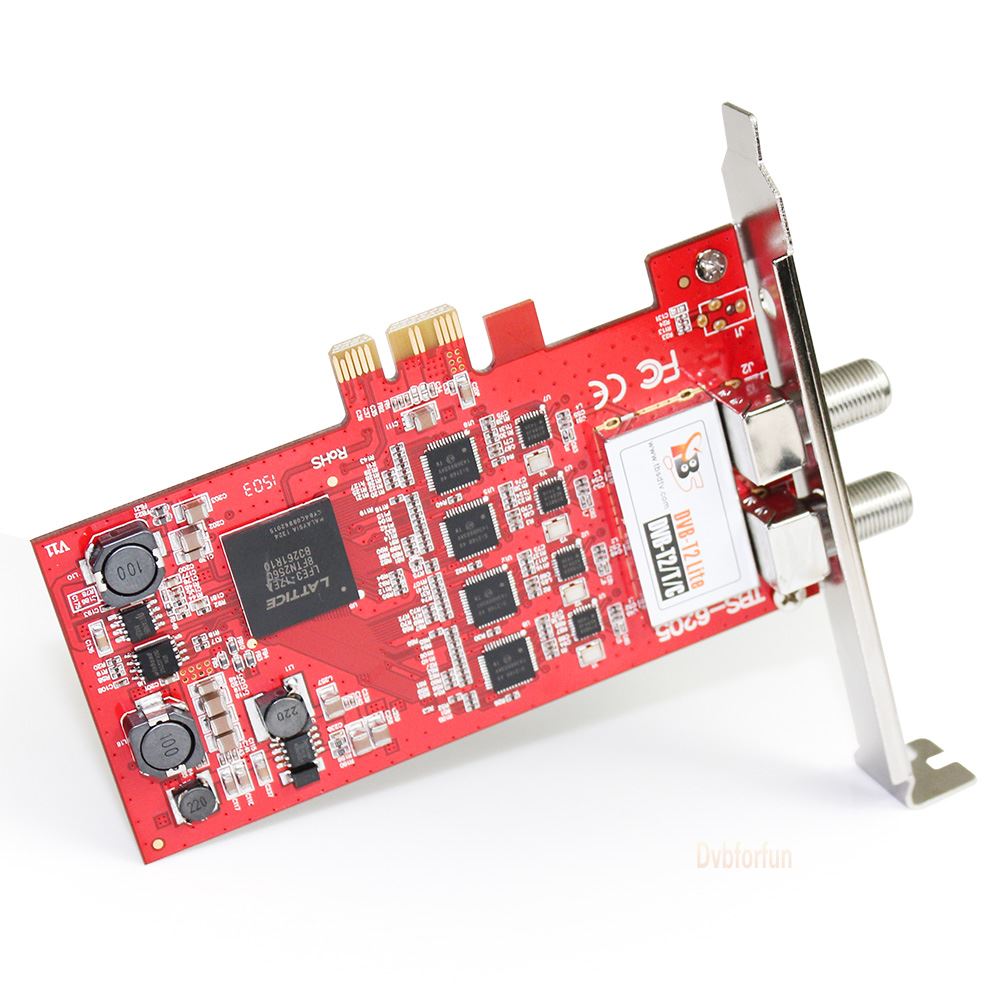

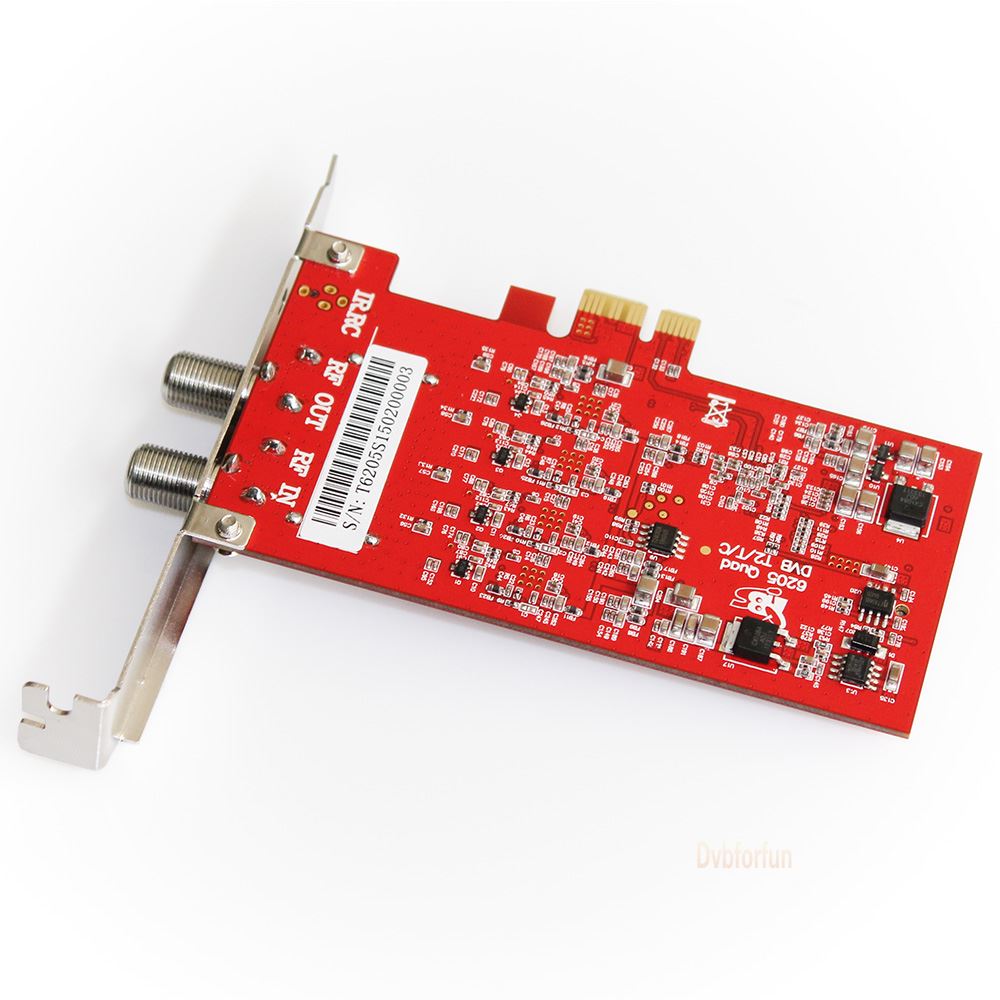

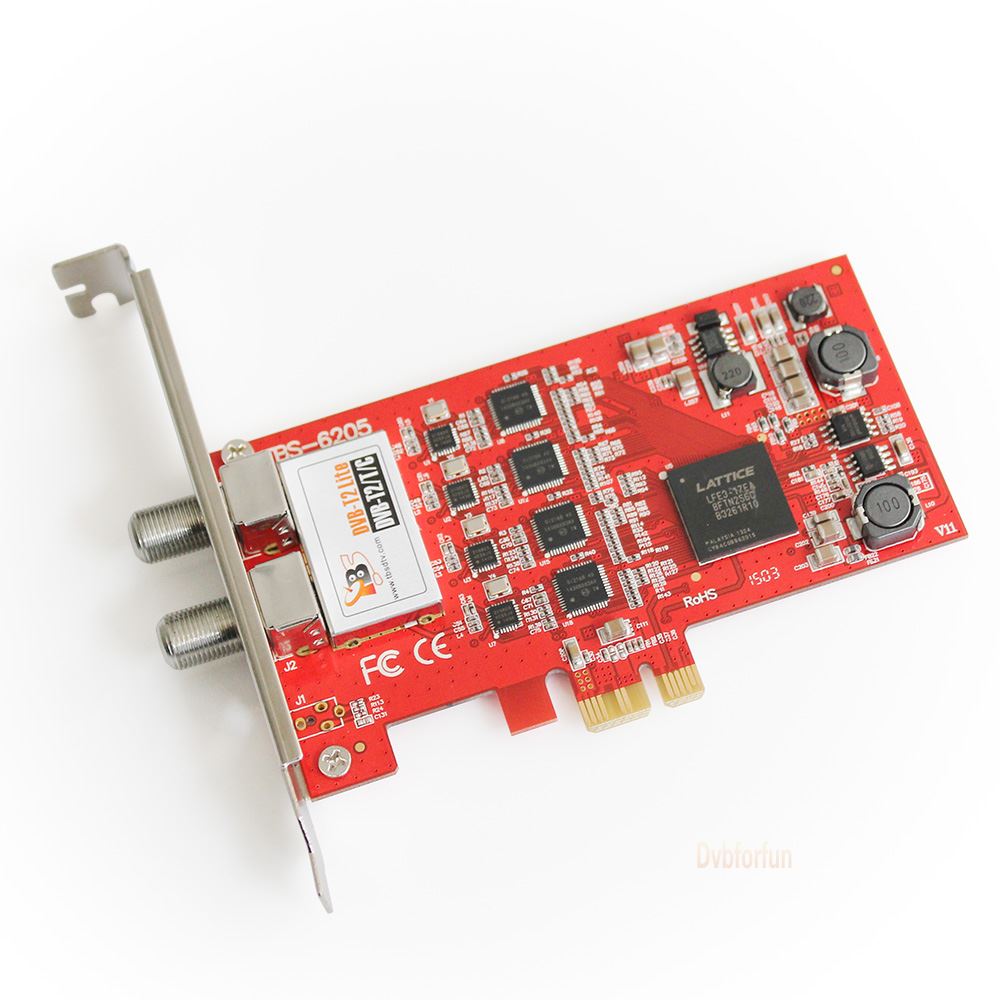

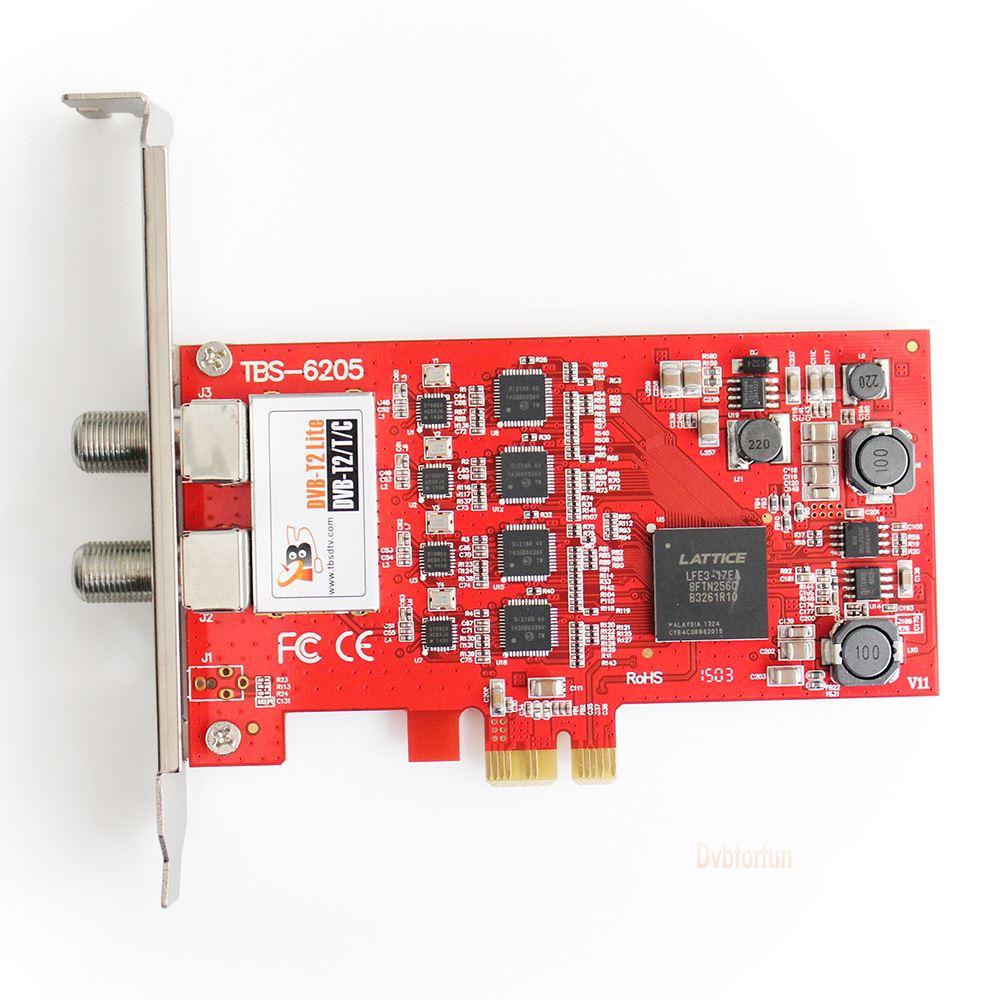

TBS6205 DVB-T2/T/C Quad TV Tuner PCIe Card
DESCRIPTION
TBS6205, the successor of TBS6285, is a DVB-T2/T TV quad tuner card with PCI-Express interface, it can be used for watching four different channels from four different frequencies simultaneously, and it supports DVB-C standard at the same time. TBS 6205 works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. With the Time-shifting function, it enables you to pause a live broadcast and continue from where you left. This DVB T2 PC TV card is ready with windows BDA driver and Linux driver. It's ideal for watching UK Freeview SD and HD channels on your desktop PC.
*Please ensure you can receive the Digital Terrestrial Television (DVB-T, DVB-T2, Freeview) service in your region. The TBS6205 requires you use a high-gain roof aerial to enable and enjoy reliable digital television reception throughout the UK.
Main Features:
Low profile design
DVB-T2/T/C SD or HD TV receiving
Quad channel receiving simultaneously
High-definition video, real-Time and scheduled video recording
High sensitivity DVB-T2 Quad Tuner for the best digital TV reception
Windows BDA driver and Linux Driver ready
Specifications:
• Support PLP( Physical Layer Pipe)
DVB-T2/T2 Lite/T
• Receiving channel: VHF band and UHF band
• Channel bandwidth: 6, 7, 8 MHz
• DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM
• FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
• Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
• Guard internal: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
• Intermediate frequency
• IF mode: low IF
• Center IF Frequency: 3 ~ 5 MHz
• Note: default 4MHz
• RF-Input impedance 75Ω (IEC-DIN female)
• RF-Output impedance 75Ω (IEC-DIN male)
• TV card size: 115x68.7mm (length x height)
• TV card weight: 78g
• Power consumption: 6.7 – 9 W
• Operating temperature: -10°C ~ 70°C
DVB-C
• Fully compliant with DVB-C and ITU J83 A/B/C specifications
• Receiving Frequency: 47~862 MHz Tuning Range
• Input level: -65~-10dBm
• 16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support
• Symbol Rate: 0.87 to 9Mbaud
System Requirements:
Windows 2000/XP/Vista/7/8 or Linux
Pentium 4 2.0 GHz, Pentium M 1.3 GHz
For HDTV: 2.6 GHz multi core processor
Hard disk with min. 1 GB free capacity
Sound and graphics card with support for DirectX 9 or higher
Available PCI Express x1, x4, x8 or x16 slot
CD/DVD drive for software installation

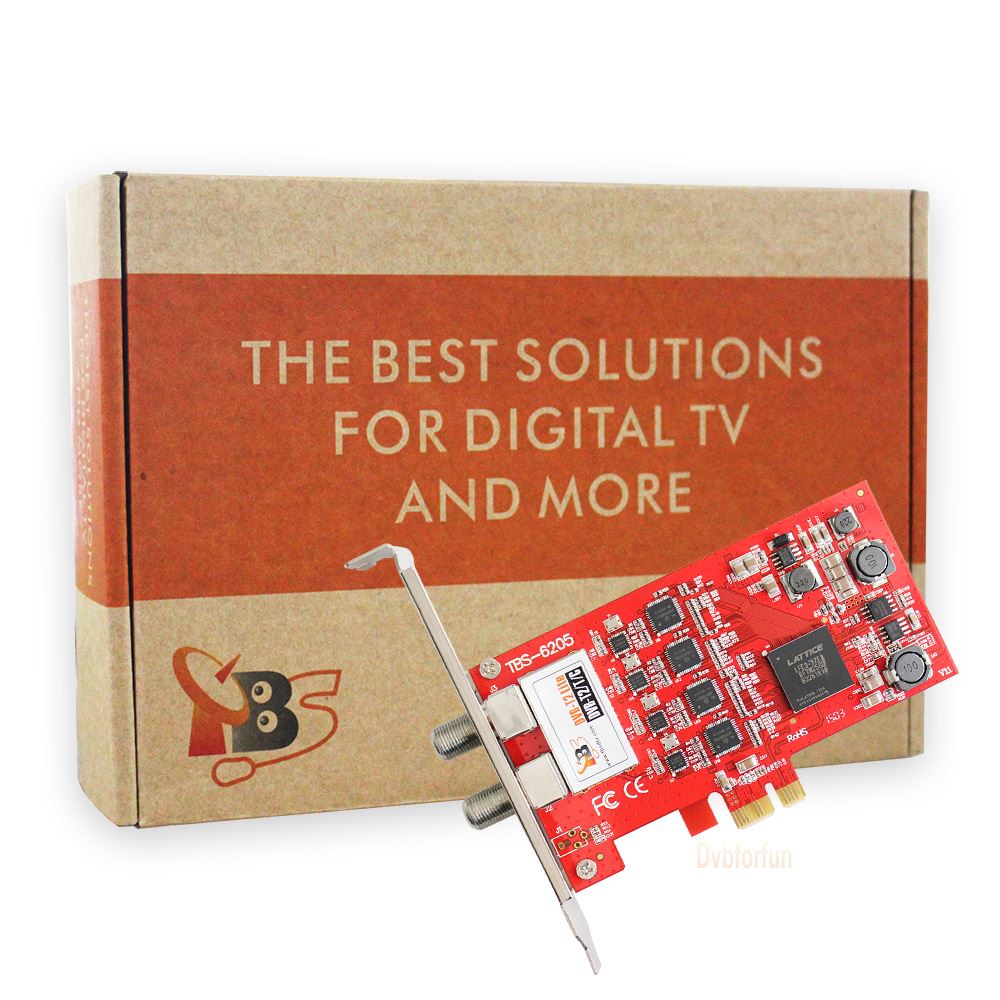

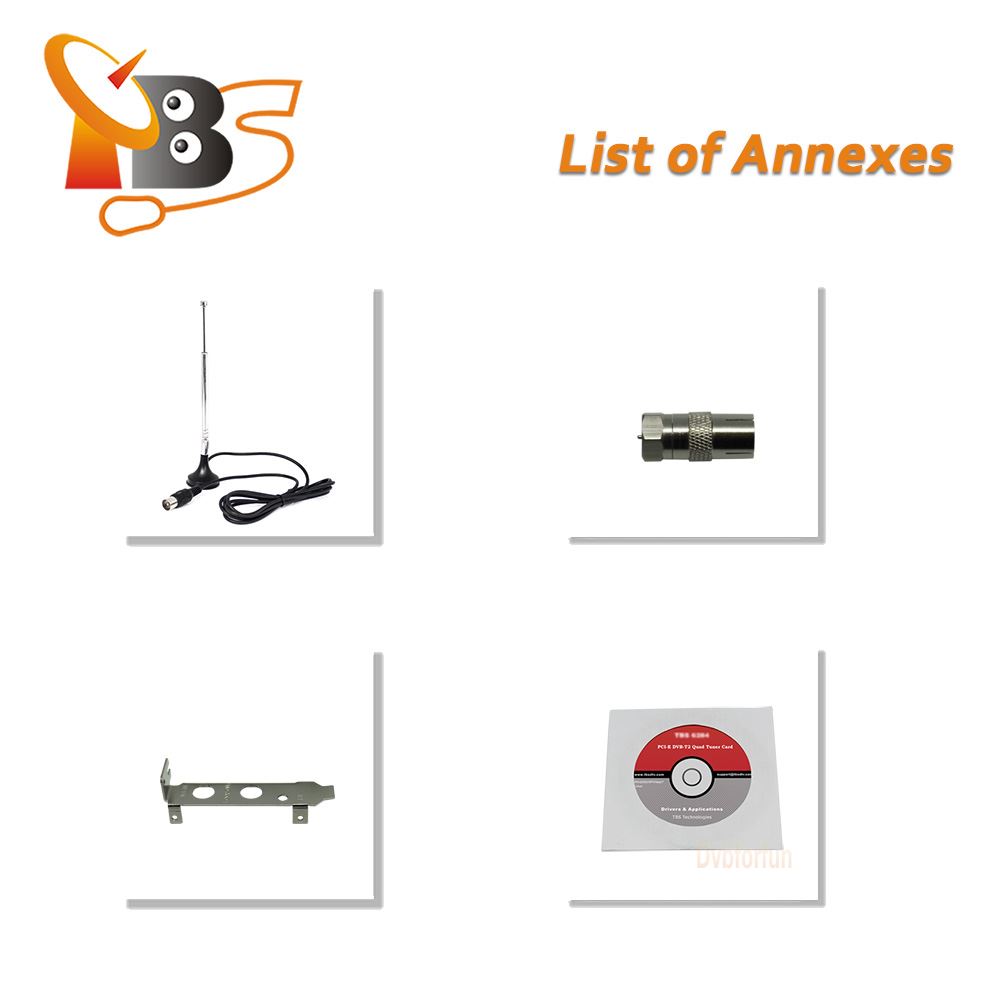

Package Contents:
1 x TBS6205 DVB-T2/T/C Quad TV Tuner PCIe Card
1x Aerial
1x Software CD
1x Low profile bracket
1x F connector
