About customs

      Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.

    Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying.



   e405_3.jpg picture by ventures_cn1 e6e9_3.jpg picture by ventures_cn1

      KingSpec              Hitachi                Sandisk CF card                             Hitachi                                   KingSpec

  3333_3.jpg picture by ventures_cn1 356c_3.jpg picture by ventures_cn1



Interface: IDE44Pin(ATA7)
Flash Type: MLC-NAND Flash
Capacity: 64GB
Feature: The best performance SSD in the world, fast write speed and read speed, free noise,perfect stability and durability and compatibility.

kingspec SSD  work in X40  video

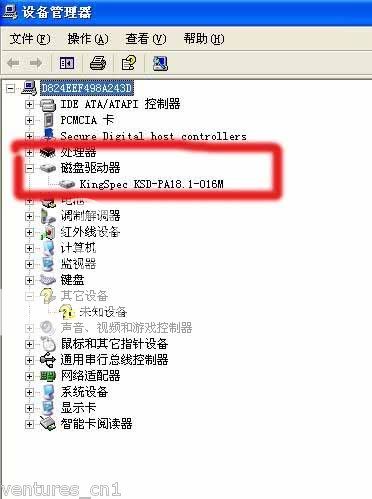

  3b0c_3.jpg picture by ventures_cn1 3d4c_12.jpg picture by ventures_cn1

Item

Model

KSD-PA18.1-064MJ

General

Form factor

1.8"

Capacity(GB)

64GB

interface

IDE44Pin(ATA7)

Performance

Average Access time

0.2ms

Sustained Read

65MB/S

Sustained Write

47MB/S

Random IOPS

5,031

Storage Media

NAND Flash

MLC-NAND Flash

Power Consumption

input Voltage

3.3V or 5V+/_5%

Idle

0.5W

Active

1.25W

Reliability& Endurance

Write endurance

80years@10GBytes write and erase per day at 64GB

Read endurance

unlimited

Wear-Leveling Algorithm

Dynamic and static wear-leveling

Data Retention

10years at 25℃

MTBF

1,000,000hours

ECC

Supports BCH ECC 8bits or 15bits  in 512 bytes

Bad Block Management

Auto Bad Block Management in system

Environment

Operating Temperature

0~70℃

Non-operating Temperature

-40~85℃

Shock

2,000G(@0.3ms half sine wave)

Vibration

20G(40-2000HZ)

Humidity

5-95%

Warranty



2years

Available unit



Available,NO EOL

Testing Platform

AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel. RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3

Testing Software

HDBench3.4.0.3,  IOMeter 2006.07.27









Physical Dimensions
& Weight

Height(mm)

6.5+/_0.25

Width(mm)

60+/_0.25

Length(mm)

70+/_0.25

Weight(g)

70



   KingSpec                                                                                                           KingSpec

   55fe_12.jpg picture by ventures_cn1 4b50_1_b.jpg picture by ventures_cn1

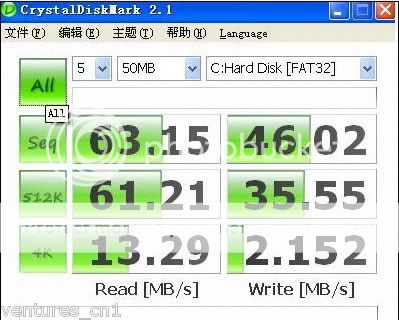

 KingSpec 1.8" IDE 32GB

   4bfa_3.jpg picture by ventures_cn1

    492f_3.jpg picture by ventures_cn1





Testing Platform: IBM X40   CPU: 1.3G    ram: 1G+256M , FAT32 ,     WIN XP

  KingSpec 1.8" IDE 16GB                                   3c5f_3.jpg picture by ventures_cn1



  Hitachi C4K60 1.8" 60GB HTC426060G9AT00

2f1e_3.jpg picture by ventures_cn1



conversion     extra  4$

e11d_3.jpg picture by ventures_cn1

HDD  case     extra  15euro

  9c4f_3.jpg 1.8ide case usb picture by ventures_cn1 9b7d_3.jpg 1.8ide case picture by ventures_cn1



In an X41 & X41T, this drives result in the 2010 error at boot

you could set the BIOS

press "F1"  into Bios

1) Startup--->Boot--->Boot after message for HDD compatibility without having to press<Esc>--->

     b4ca_3.jpg picture by ventures_cn1
2) press "enter"- continue-

      b777_3.jpg picture by ventures_cn1

      b6a4_3.jpg picture by ventures_cn1

  3)   press "enter"- F10





Shipping Policy

The product will be shipped via china air post  ,about 9-15 businese days you could receive.  We will send to you the track number from eBay message that you could track it with the website .



Reception and Acceptance policy

The cost is not including customs duty.

please check your parcel face to the post carrier, If have any problems  you could rejest the item. then inform us at once.



Return Policy:

If the product have any questions, Returned items MUST have all ORIGINAL packaging with the complete content. We will refund you after the item reception.



Warranty Policy

This item by us carry a Full 1-Year Manufacturer Warranty. The return shipping cost from your country to China is paid by buyer while the return shipping cost from China back to your country is paid by us
