This is the listing for 1 x selected Amp/Package wire connector only.
              (Please select the required type from the drop-down menu).

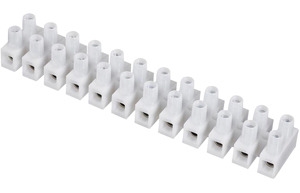

Amp - 12 Way Terminal Block Strip - Electrical Wire Connector


Item specifics:

  • Screw clamp fixing
  • Material: Brass and plastic
  • Brass contacts and screw clamp fixing in chrome-plated steel.
  • Terminal blocks (12-way strips) in polythene insulation, heat resistant up to 65°C.
  • Each terminal block has 2 rows of 12 positions (24 connection screws) Making wiring connections easy.
  • Each terminal block is manufactured using brass conductor inserts with electro-tin plated connector screws.

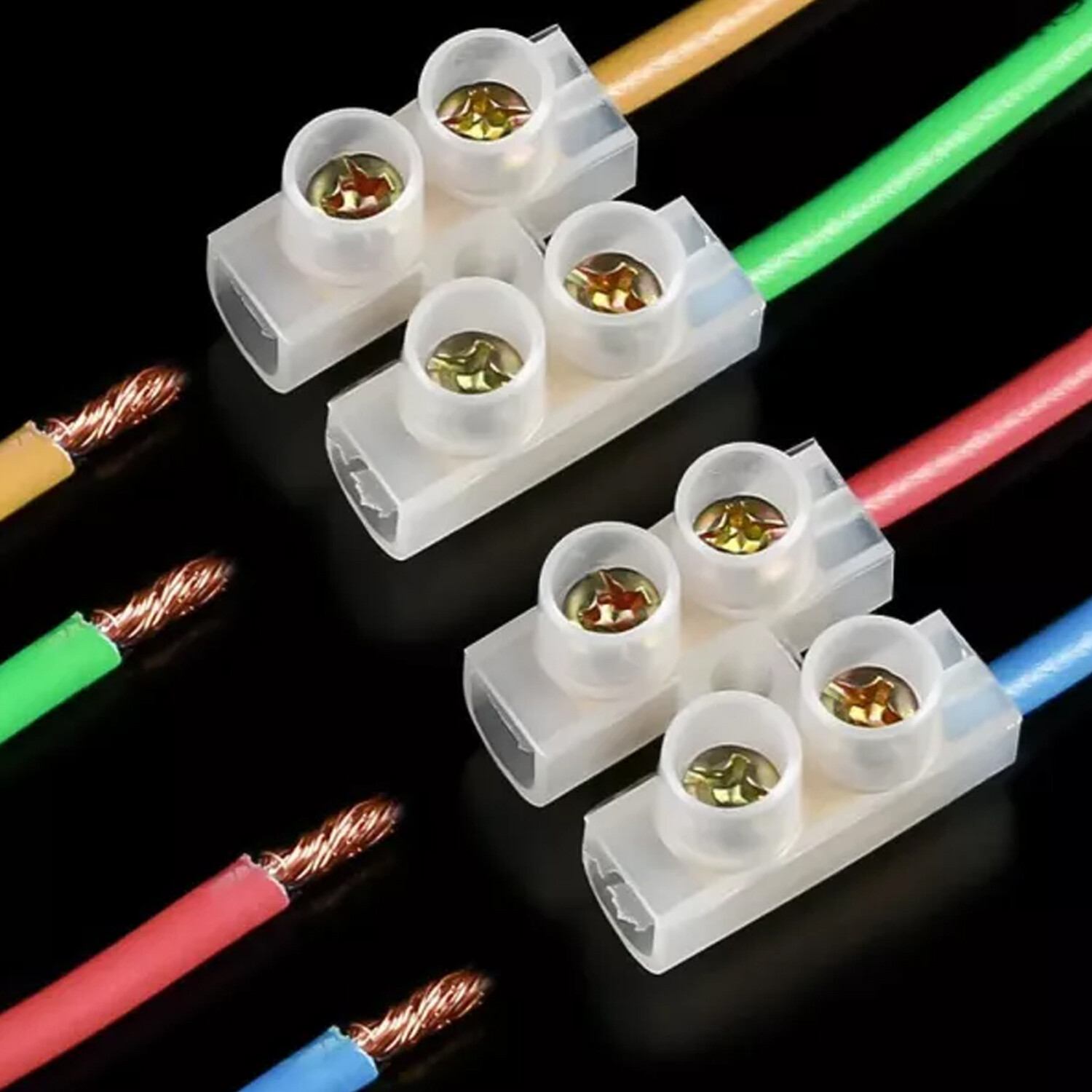

  • Suitable for a quick and easy joining of vehicle wiring, boats and caravan wiring, modelling electrics, household lighting, general mains power connections.
Choose From 3/5/15/30/60 Amp Strips - Various Quantities
  • Easy To Cut Terminals
  • Natural Colour
  • Plastic Casing
  • Flat Head Screw Driver Terminal Block
  • Buy More Save More!

Dimensions :  Approx.

  • 3 Amp:
    • Length: 95mm / 3.5"
    • Height: 15mm / 0.5"
    • Depth: 15mm / 0.5"
  • 5 Amp:
    • Length: 115mm / 4.5"
    • Height: 15mm / 0.5"
    • Depth: 15mm / 0.5"
  • 15 Amp:
    • Length: 140mm / 5.5"
    • Height: 20mm / 0.75"
    • Depth: 20mm / 0.75"
  • 30 Amp:
    • Length: 165mm / 6.5"
    • Height: 20mm / 0.75"

    • Depth: 20mm / 0.75"
  • 60 Amp:
    • Length: 180mm / 7"
    • Height: 25mm / 1"
    • Depth: 25mm / 1"

Cross Section

Current Range

Rated Voltage

Dimensions (mm)

L

W

f1

f2

D

d

H

h

4mm2

2 ~ 24 A

380 V

93

17

2.8

2.1

8

6

14

7

6 mm2

5 ~ 32 A

380 V

114

19

3.3

2.6

10

8

16

9

10 mm2

10 ~ 57 A

400 V

125

21

4.3

2.7

11

9

17

9

12mm2

15 ~ 61 A

400 V

138

23

4.5

3

12

10

19

11

14 mm2

20 ~ 69 A

400 V

145

25

5

3

13

10

20

12

16 mm2

30 ~ 76 A

400 V

165

26

5.5

3

14

11

20

12

25 mm2

60 ~ 101 A

400 V

186

30

7.1

3.3

16

13

26

15
