This is the listing for 1 x DC12V LED Driver only.  Please select the required type from the drop-down menu.  All other item shown for illustative purpose



DC 12V LED Driver 5A to 50A Amp Power Supply Transformer IP20 110- 220 LED Strip

Features:

  • DC 12V IP20 non dimmable Switching power supply, Convert AC 100-240V to DC 12V.
  • This IP20 DC 12V switching power supply is widely used for low voltage LED strip light, RGB LED strip.
  • From 60-240W transformers do not have ventilation fan for heat dissipation, only the 360W to 720W transformers have fan.

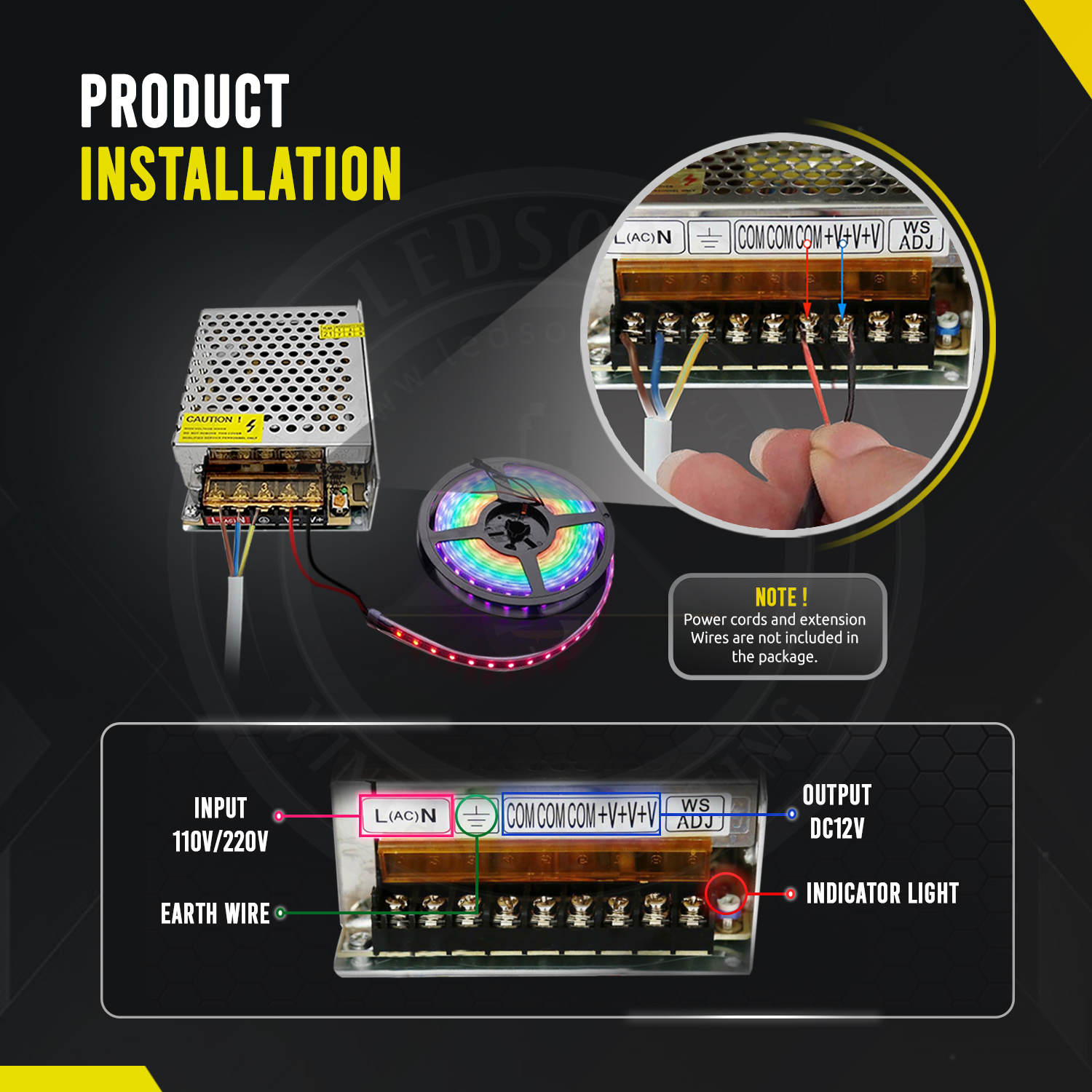

  • This power supply is hard wire type, can use extra electric wire to run to line electricity.
  • Indoor use only, these are non-waterproof transformers.

Item Specifications / Technical Details:

  • Item type: LED Transformer
  • Input Voltage: 100/240V AC
  • Input Frequency Range: 50/60Hz
  • Output Voltage: DC 12V
  • Output Current: 15Amp
  • Output Power: 15W - 600W
  • Dimension: 200mm L x 100mm W x 45mm H
  • Connection Type: Screw Terminals
  • Protections: overload / over voltage / short circuit
  • Shell Material: Aluminium

Package included:

  • 1 x Transformer

Note:

  • Due to the light and screen difference, the colour of the item may be slightly different from the pictures.
  • Please allow 0.2-0.5cm differences due to manual measurement.
  • Delivery times can vary depending on the destination location.
  • We would advise against booking an Electrician or fitter until you have received all items in satisfactory condition.



DC12V IP20 Drivers Length Width Height Product Weight with Fan/Without Fan
DC12V IP20 24W Driver 95mm 65mm 45mm 110g No
DC12V IP20 30W Driver 90mm 65mm 40mm 120g No
DC12V IP20 40W Driver 90mm 65mm 40mm 160g No
DC12V IP20 60W Driver 110mm 79mm 39mm 200g No
DC12V IP20 80W Driver 170mm 105mm 50mm 250g No
DC12V IP20 100W Driver 160mm 99mm 43mm 360g No
DC12V IP20 120W Driver 199mm 97mm 42mm 400g No
DC12V IP20 150W Driver 215mm 105mm 50mm 480g No
DC12V IP20 180W Driver 210mm 69mm 69mm 515g No
DC12V IP20 200W Driver 215mm 105mm 50mm 600g No
DC12V IP20 240W Driver 200mm 112mm 50mm 665g No
DC12V IP20 300W Driver 200mm 110mm 50mm 750g Yes
DC12V IP20 360W Driver 216mm 114mm 50mm 760g Yes
DC12V IP20 400W Driver 200mm 100mm 50mm 1000g Yes
DC12V IP20 480W Driver 215mm 115mm 50mm 1100g Yes
