Please Note:
PID Temperature Controller detective temperature range is 0 to 999℃, but temperature range of probe sensor we delivered is 0 to 400℃.
Features:
1. Measuring accuracy: ±0.5%FS
2. Cold-end compensation tolerance: ±2℃（can be modified by software in 0~50℃）
3. Resolution: 14 bit
4. Sampling cycle: 0.5 Sec
5. Power : AC 100-240V 50/60HZ

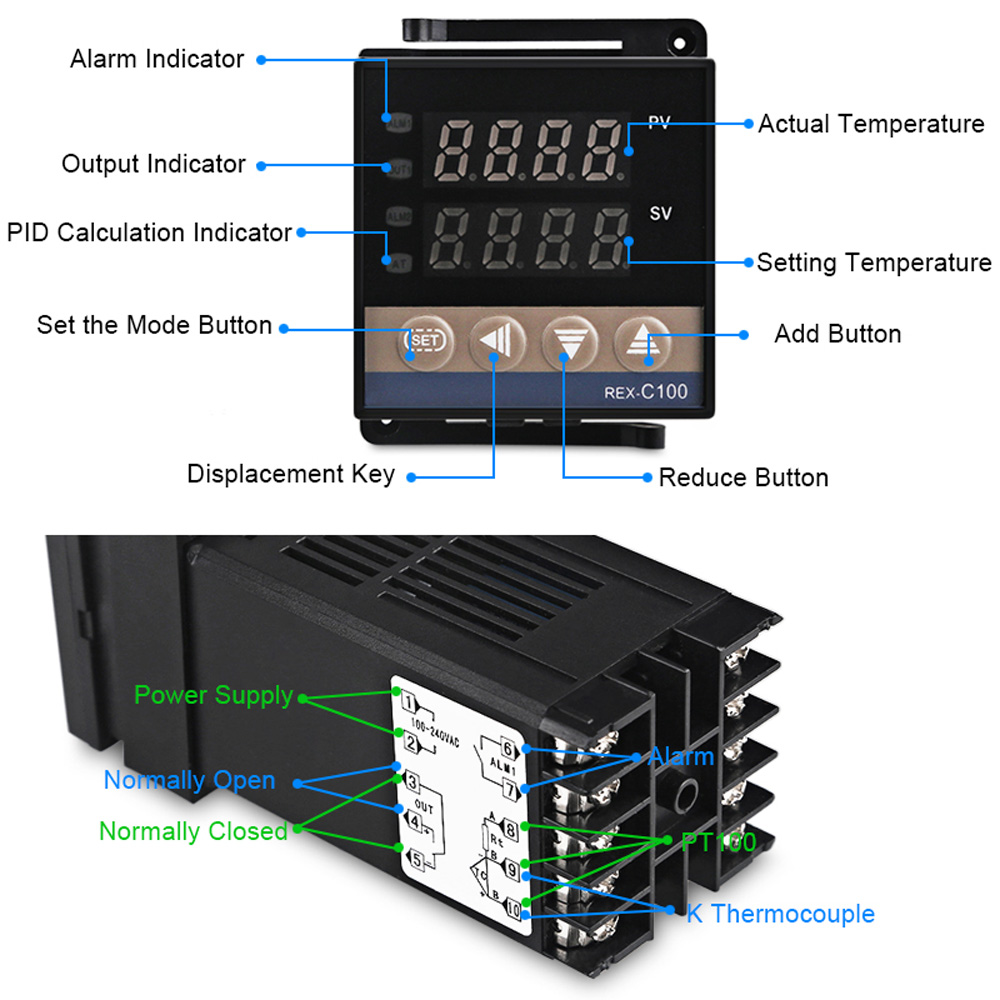

6. Process value (PV), Setting value (SV)
7. Output, and self-tuning can be indicated by:LED
8. PIN control (including ON/OFF, step-type PID and continuous PID)
9. Self-tuning control
10. Relay output: contact capacity 250V AC 3A (resistive load)
11. Proportional band (P): 0~full range (ON/OFF control when set to 0)
12. PID Temperature Controller Detective temperature rang: 0 to 999℃
(Probe sensor temperature range 0 to 400℃)
13. Insulation resistance: >50M ohm(500V DC)
14. Insulation resistance: 1500V AC/min
15. Insulation resistance: Power Consumption < 10 VA
16. Service environment: 0~50℃
17. Environment with no corrosive gas: 30~85% RH

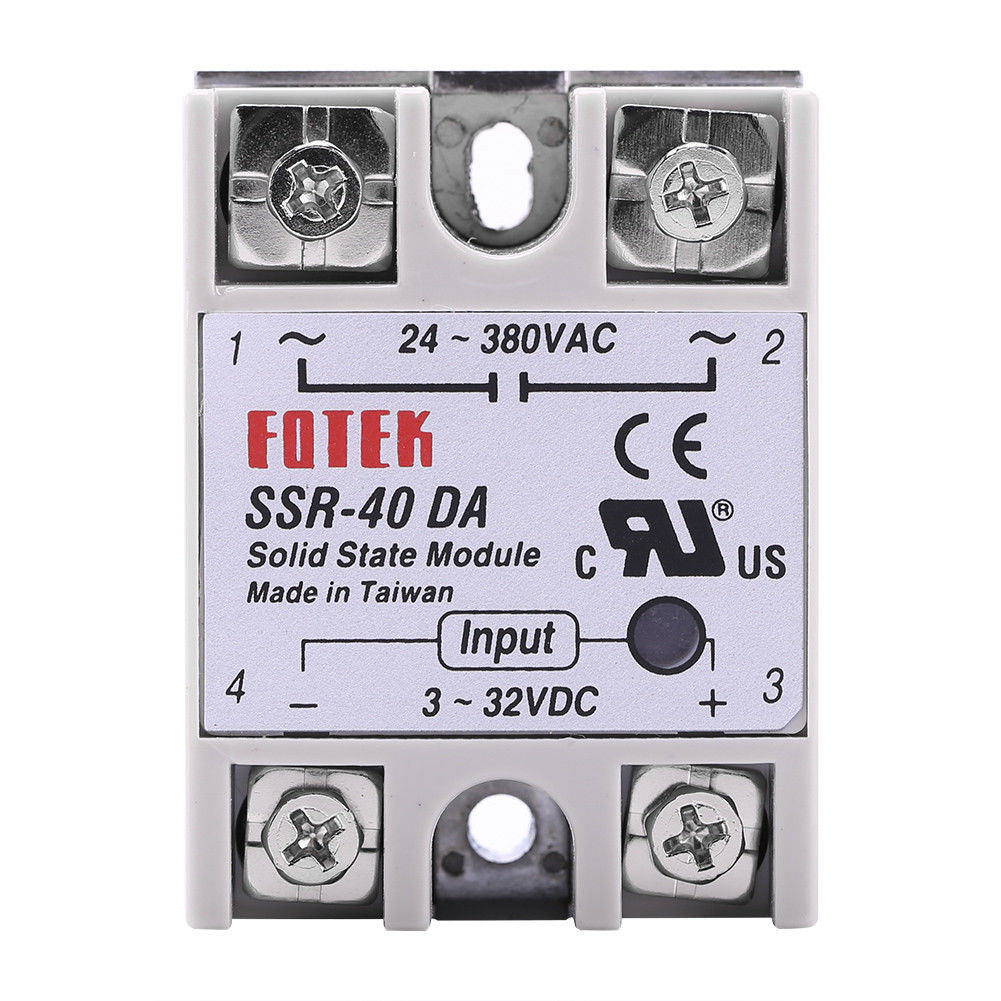

Max.40A SSR
1.Output Current: 40A
2.Input Voltage: DC 3-32V
3.Output Voltage: 24-380V AC
4.Output Voltage Range: Standard Type

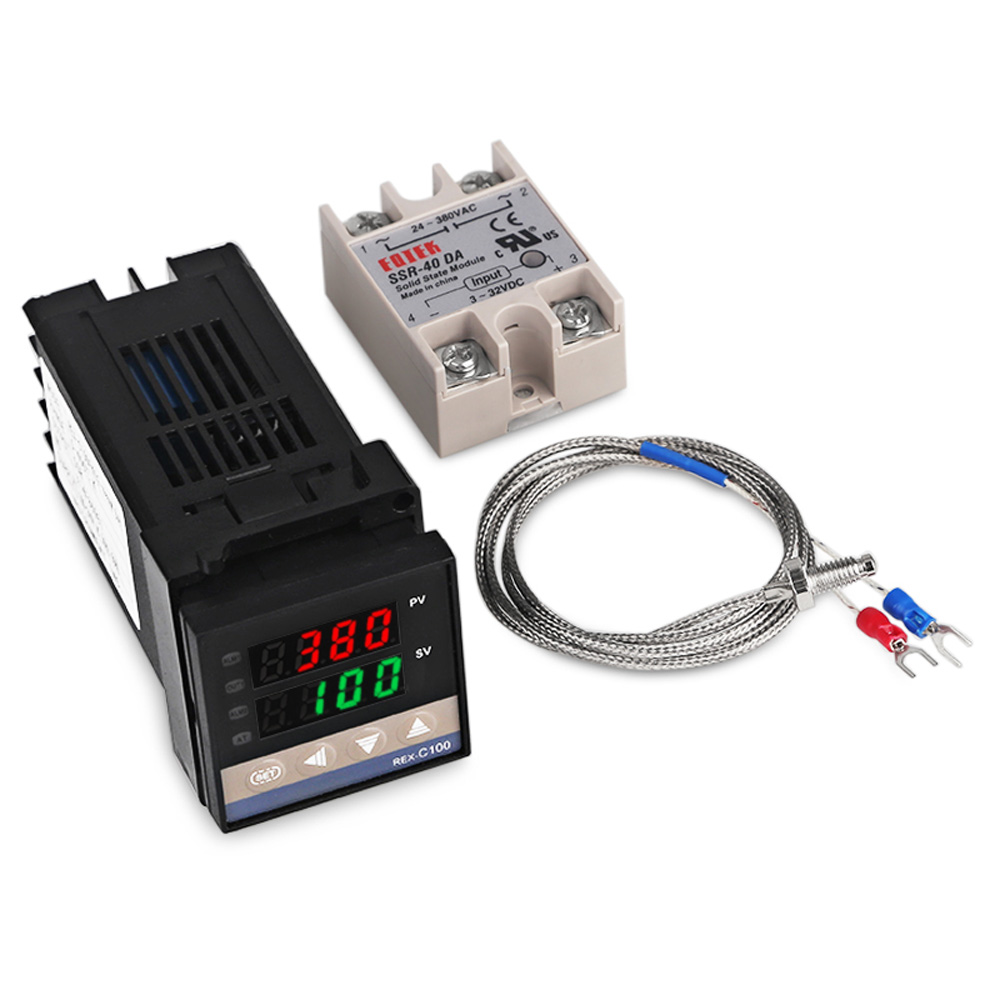

Package Included:

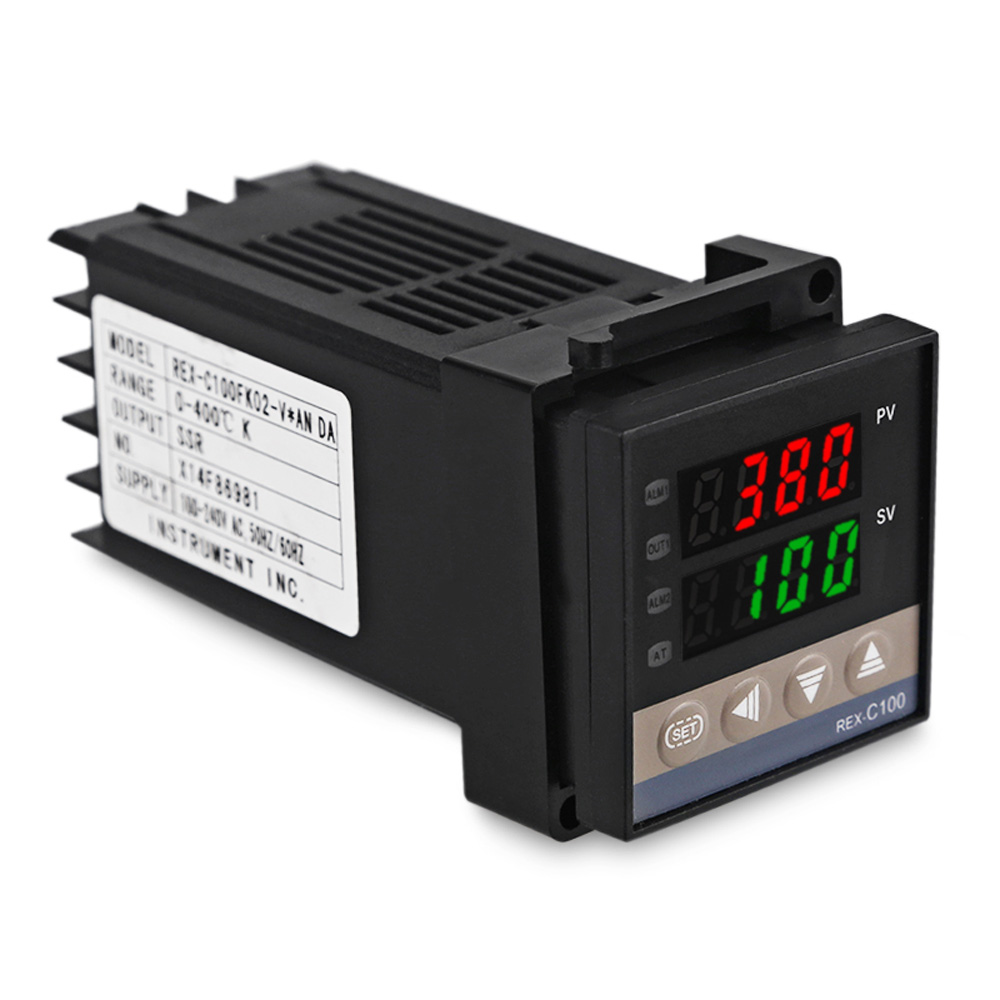

1 x PID Temperature Controller

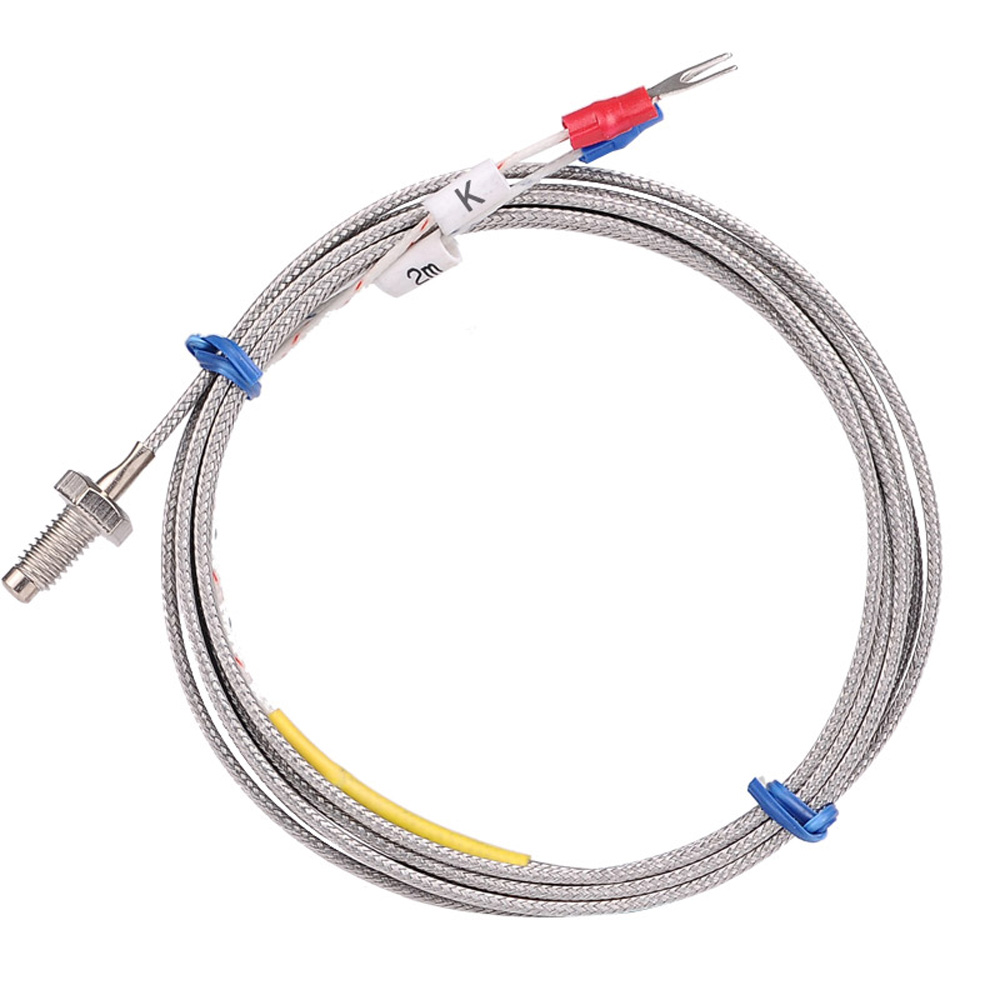

1 x K Type Probe Sensor
1 x Max.40A SSR
