【FRA】NVEM V2 Mach3 Motion Motor Control Card Ethernet Port for 4 Axis CNC Router

[Germany Warehouse]

Ship from Germany Warehouse by DHL to EU Countries

fast shipping to below Europe Countries:

Austria,Belgium,Bulgaria,CzechRepublic,Denmark,Estonia,Finland,France,Germany,Greece,
Hungary,Ireland,Italy,Latvia,Liechtenstein,Lithuania,Luxembourg,Monaco,Netherlands,Poland,
Portugal,Romania,Slovakia,Slovenia,Spain,Sweden.United Kingdom


Parcel include:


Package include:



  • 1 x 4 Axis Ethernet NVEM Mach3 Motion Control card (Version 2)
  • 1 x Entwork Cable
  • English Manual Will send by Email.


    •


    4 Axis Ethernet MACH3 Motion Control Card NVEM

        NVEM is the 4 axis motion controller we spend 4 years to design.

        NVEM support Mach3 software and standard MPG,through Ethernet to communicate with computer,just use the Twine to connect directly or transfer with router.
        NVEM motion controller adopts the ARM design framework. The ARM design includes communication, codeanalytic,underlying algorithm and pulse gerneration.Rational design,reliablecontrol, convenient operation.
        This manual introduces operation,connection and usage schedule of our professional motion controller for engraving machine.Through a lot of the drawing the users can learn quickly how to use this motion controller.



    1.2 Performance parameter

    Features:
        1) Can control up to four stepper motor at the same time.
        2) Support Motor: Servo motor, Stepper motor.
        3) With 12 channel programmable input port.
        4) With 10 channel programmable output port.
        5) 1 channel standard MPG interface
        6) PWM output control
        7) Ethernet interface, support MACH3 software
        8) DC electrical isolation
        9) Optocoupler isolation
        10) Up to 200KHz stepper motor control pulse output

    Specification:
        1) Support Ethernet;
        2) 12 ports photoelectric isolated input interface for ordinary digital data;
        3) 10 ports photoelectric isolated output interface for ordinary digital data;
        4) 1 port 0-10V spindle speed analog output interface(can change to PWM output);
        5) Can support 3-6 axis stepper systems,200KHz pulse output for every axis;
        6) ARM motion control chip;
        7) Main device is 12V-32VDC power supply input,current should higher than 0.5A;
        8) Compatible with MPG input,support the digital display MPG from our company.

    2. Product connection define and method
    0.1

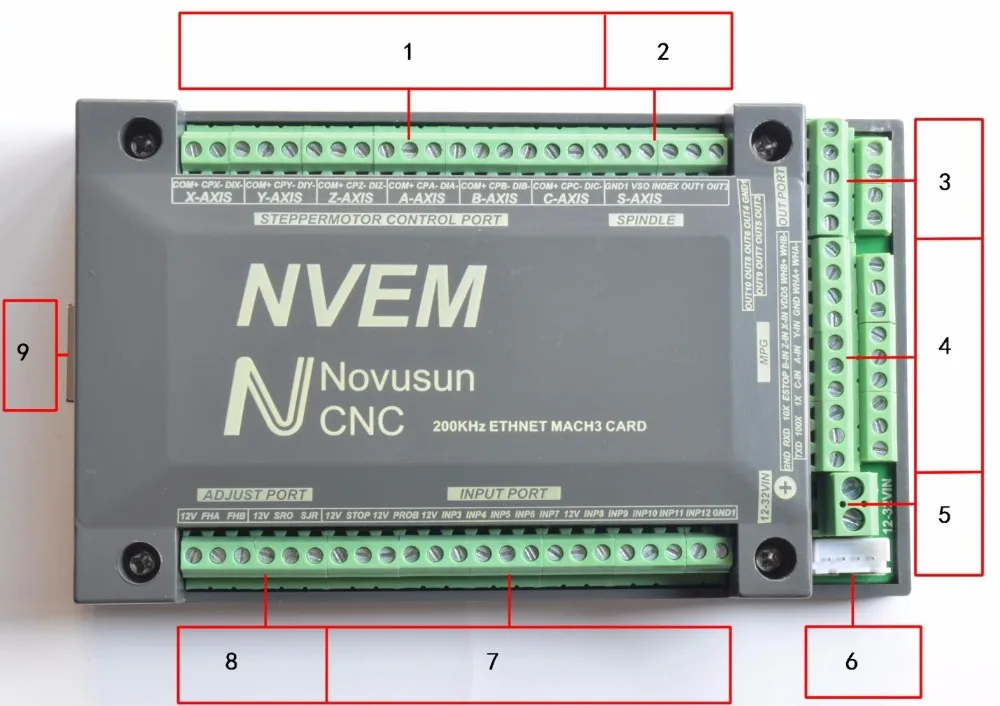

     Product wiring section and interface summary

        As the figure showed,the connection of the controller includes power supply interface,Ethernet connection interface,MPGinterface,Stepper/Servo control output interface,spindle control output interface, Estop and limited switch and tool setting input interface and so on. Now we descript them in details as below.

    2.1) Stepper motor control interface

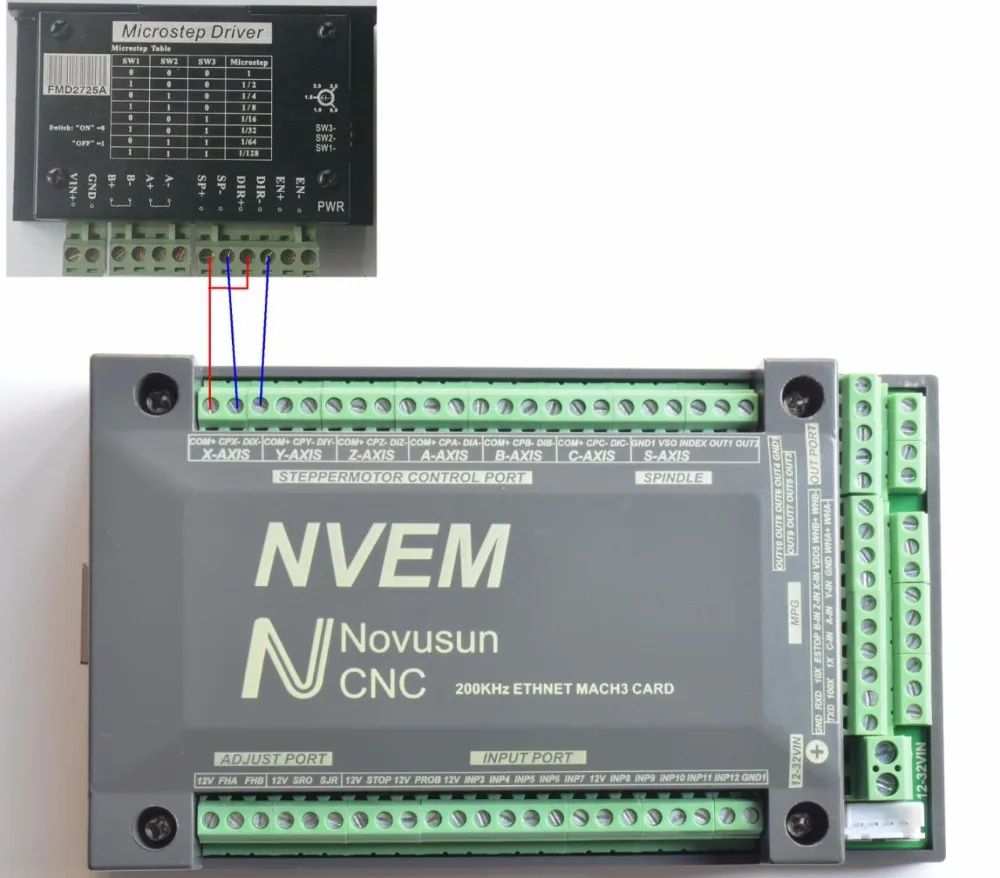

        No.1 terminal block is 6 axis stepper driver control output interface, from left to right,there are X,Y,Z,A,,B,C 6 axis output, it’s common anode,the cable connection for each axis is COM+/CP-/DIR-, COM is common+ ,CP is Pulse-, DIR is direction-.Connection showed as Figure 2-3.COM+ connect with the SP+ and DIR+.


     Pin markAxisDefinition
     COM+Commom+common anode +5V
     CPX-X axisPulse output- for X axis
     DIX-X axisDirectrion output- for X axis
     CPY-Y axisPulse output- for Y axis
     DIY-Y axisDirectrion output- for Y axis
     CPZ-Z axisPulse output- for Z axis
     DIZ-Z axisDirectrion output- for Z axis
     CPA-A axisPulse output- for A axis
     DIA-A axisDirectrion output- for A axis
     CPB-B axisPulse output- for B axis
     DIB-B axisDirectrion output- for B axis
     CPC-C axisPulse output- for C axis
     DIC-C axisDirectrion output- for C axis


    0.2

    2.2) Spindle control output

        We define the interface from left are: GND1(Output GND),VSO(0-10V adjustable speed output),INDEX(spindle speed feedback input),OUT1(common output port 1),OUT2(common output port 2),.

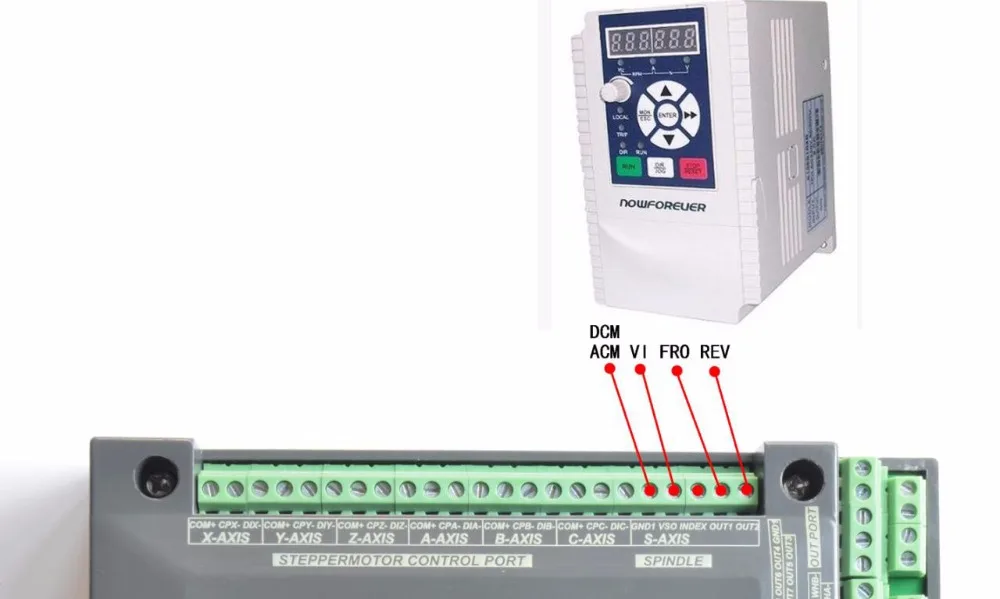

        Take Nowforeuer inverter as the example. Spindle control output and the inverter connection showed as Figure 2-4.If ACM and DCM are closed,only need to connect one port.

        If need the Mach 3 to show the real in time spindle speed,just fix one hall device,every revolution send one pulse between INDEX and GND1,pulse voltage is 5V-10V.


    0.3
