Description:

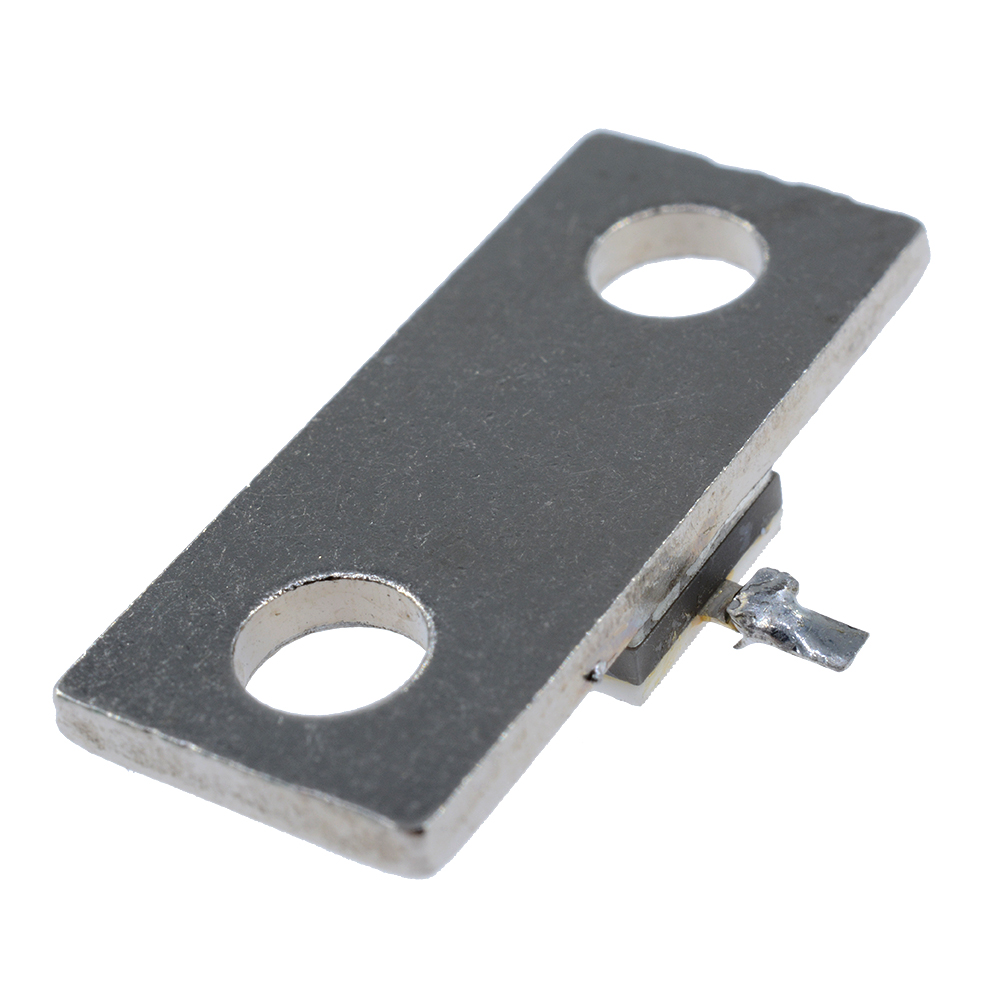

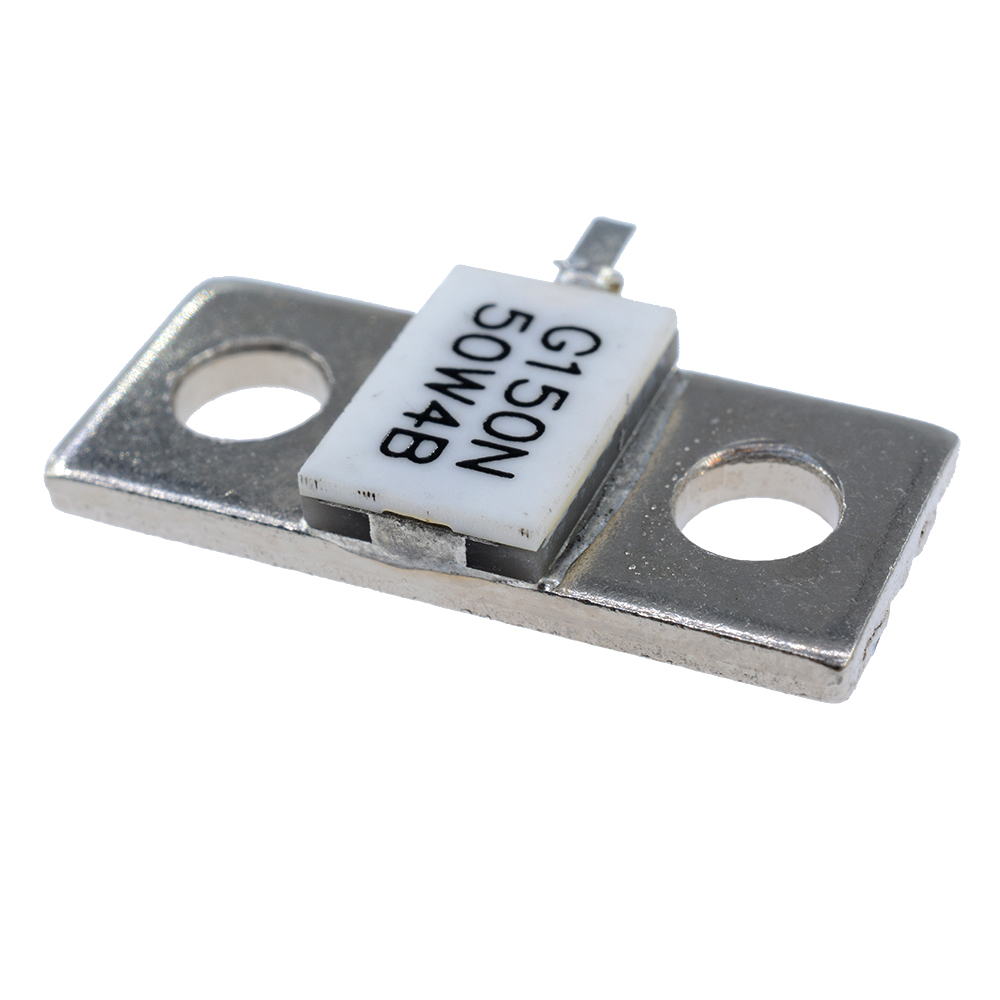

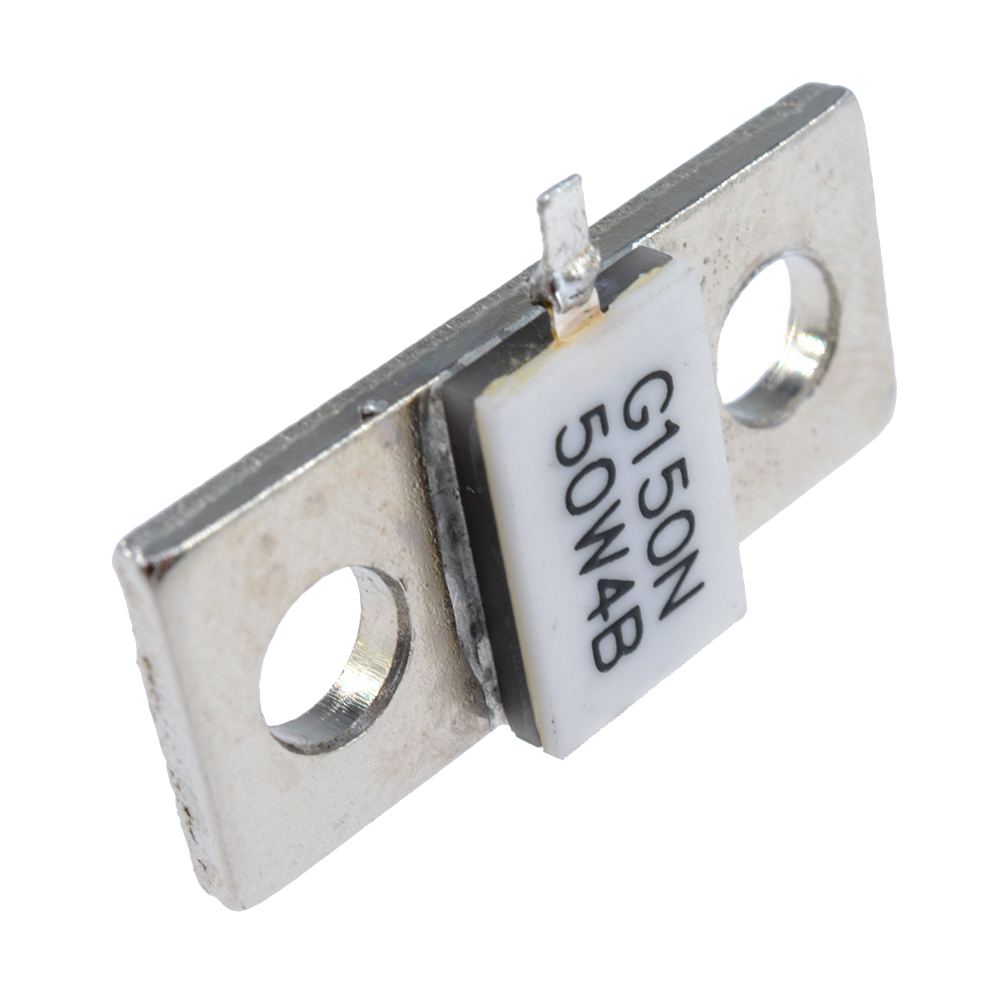

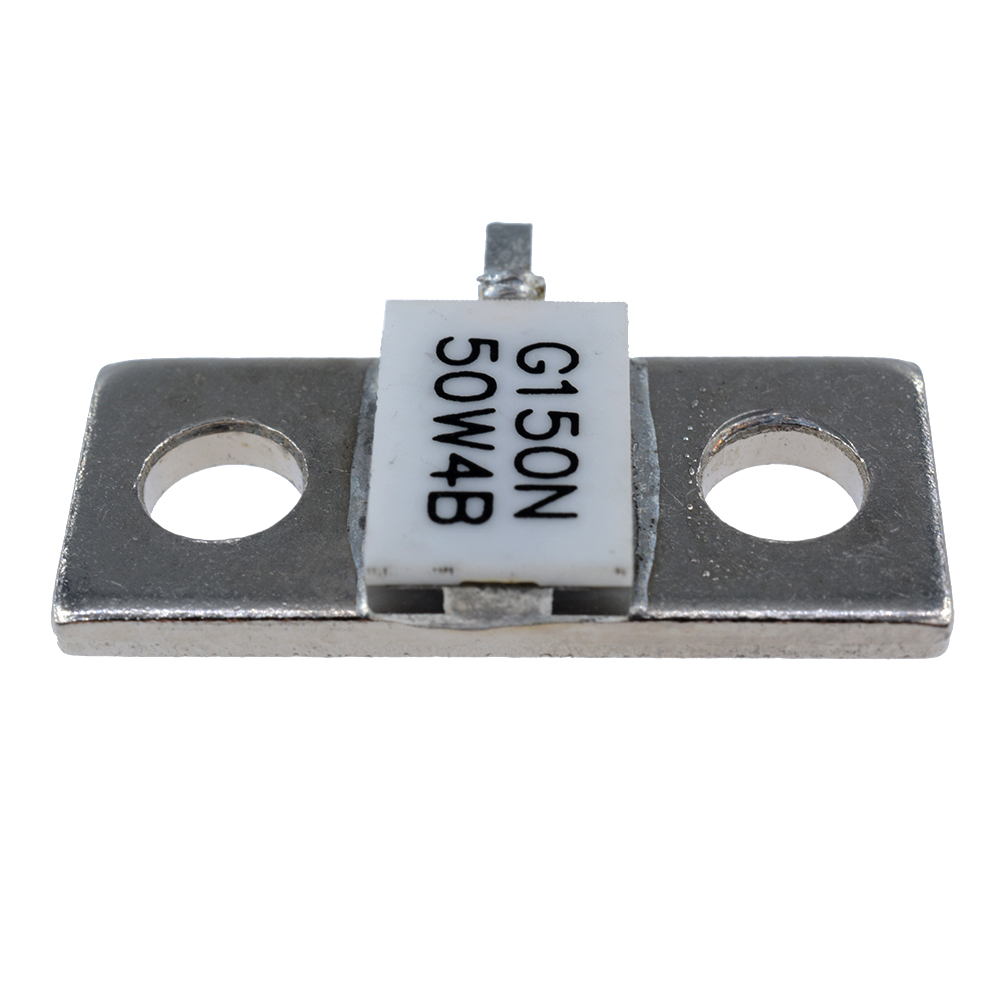

The G150N50W4E is high performance Aluminum Nitride (AlN) flange
mount termination intended as a cost
competitive alternative to Beryllium
Oxide (BeO). The termination is well suited to all cellular frequency bands
such as; AMPS, GSM, DCS, PCS,
PHS and UMTS. The high power
handling makes the part ideal for terminating circulators and for use in
power combiners. The termination is also RoHS compliant!

Features:
RoHS Compliant
150 Watts
DC – 3.0 GHz
AlN Ceramic
Non-Nichrome Resistive Element
Low VSWR
100% Tested

Specifications:
Resistive Element :Thick Film
Substrate :AlN Ceramic
Mounting Flange :Nickel Plated Copper
Operating Temperature:-50 to +150°C (see de rating chart)
Tolerance is :±0.010”, unless otherwise specified. Designed to meet of exceed applicable portions of MIL-E-5400. All dimensions in inches

Electrical Specifications:
Resistance Value: 50 Ohms, ±2%
Power: 150 Watts
Frequency Range: DC – 3.0 GHz
Return Loss:25dB DC – 2.0 GHz 20dB DC – 3.0 GHz
Specification based on unit properly installed using suggested mounting instructions and a 50 ohm nominal impedance. Specifications subject to change.

Package included:
1PC*DC-3GHz RF Termination Microwave Resistor Dummy Load RFP 250N50 250W 50ohms
