Datasheet：

Contact us send the datasheet to you

Driver Installation

This LCD Module need install driver first.

Step 1：Download the Raspbian IMG

https://www.raspberrypi.com/software/operating-systems/

Step 2: Burn the system image

If you don't know how to do that,you can refer to theRaspberry Pi office tutorial

Step 3: Open terminal(SSH) and install the driver on RaspberryPi

(tested on RaspberryPi 3B+,3B,2B,2B+,1B,ZERO)

Run:

sudo rm -rf LCD-show

git clone https://github.com/goodtft/LCD-show.git

chmod -R 755 LCD-show

cd LCD-show/

sudo ./LCD35-show

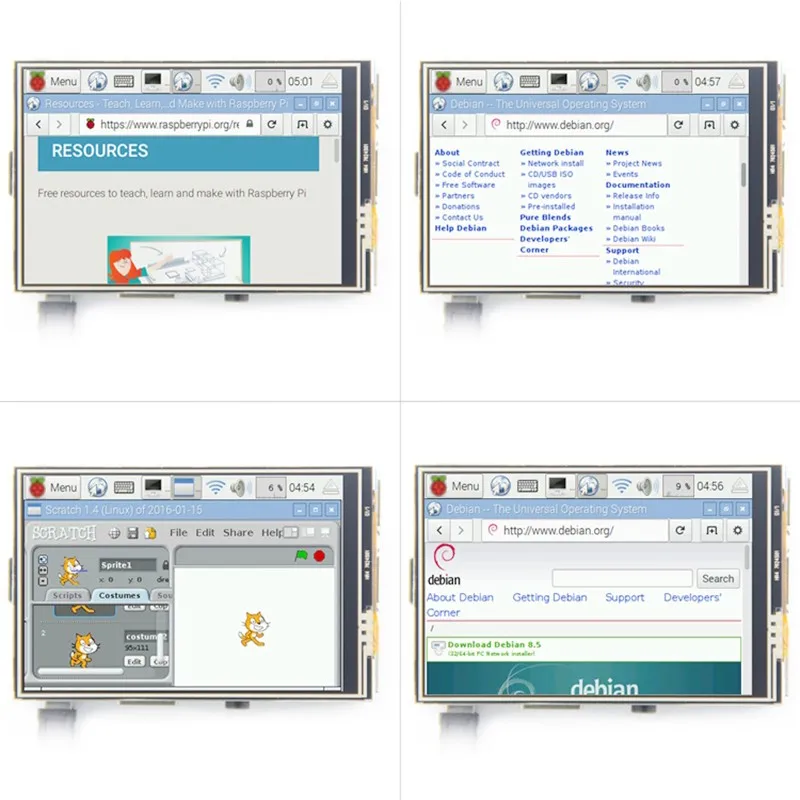

Wait A Few Minutes, when the system reboot ok, you can see that.

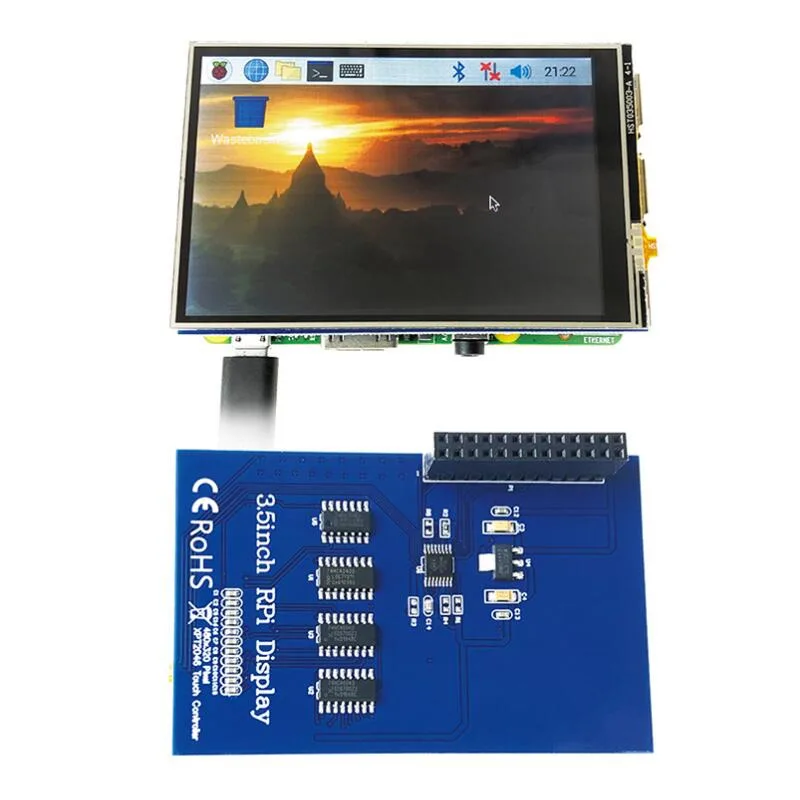

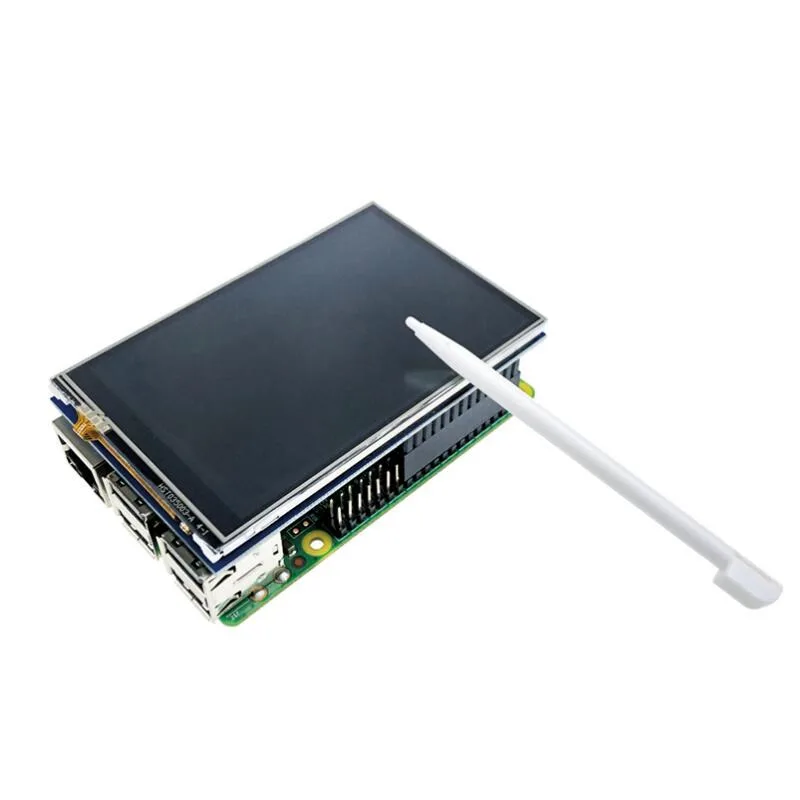

Product introduce

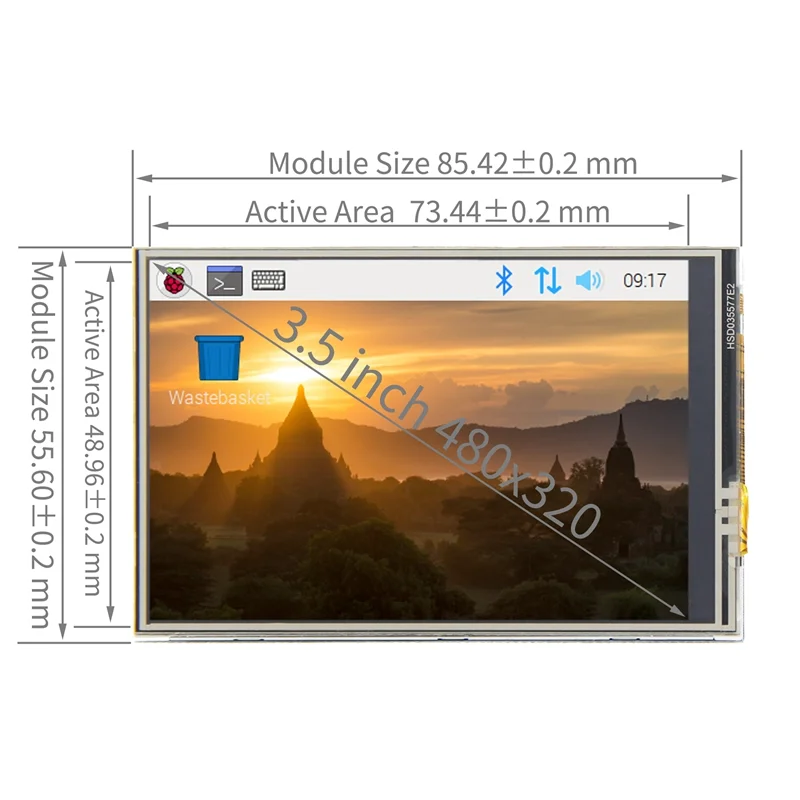

3.5inch standard display, 480 * 320 resolution

Highlight backlight

options：

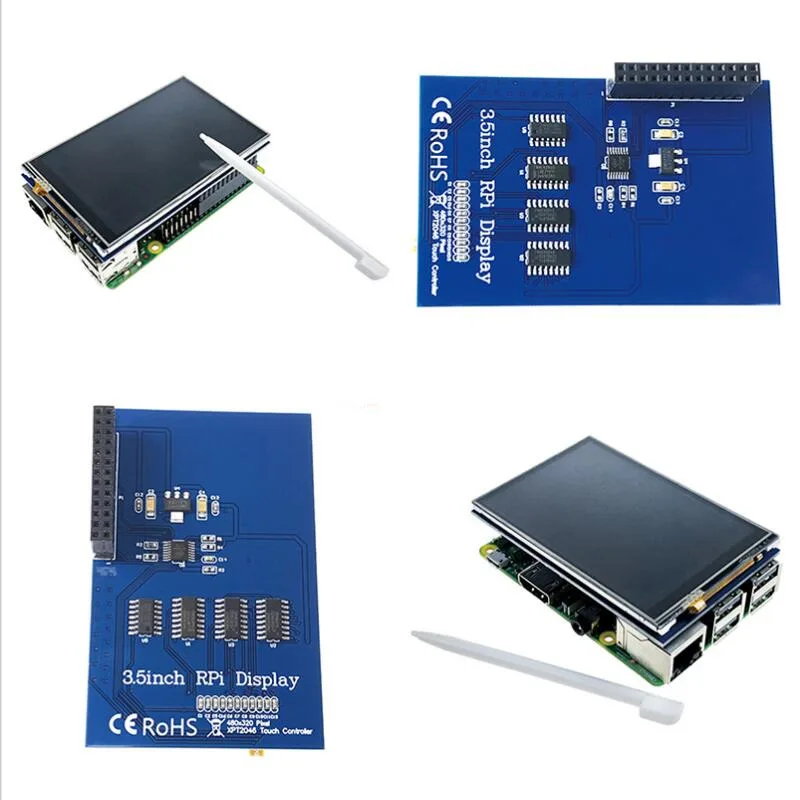

Can choose with a resistance touch screen,with a pen, can be touch control;

You can also choose to have no touch,no pen, and not to have touch control

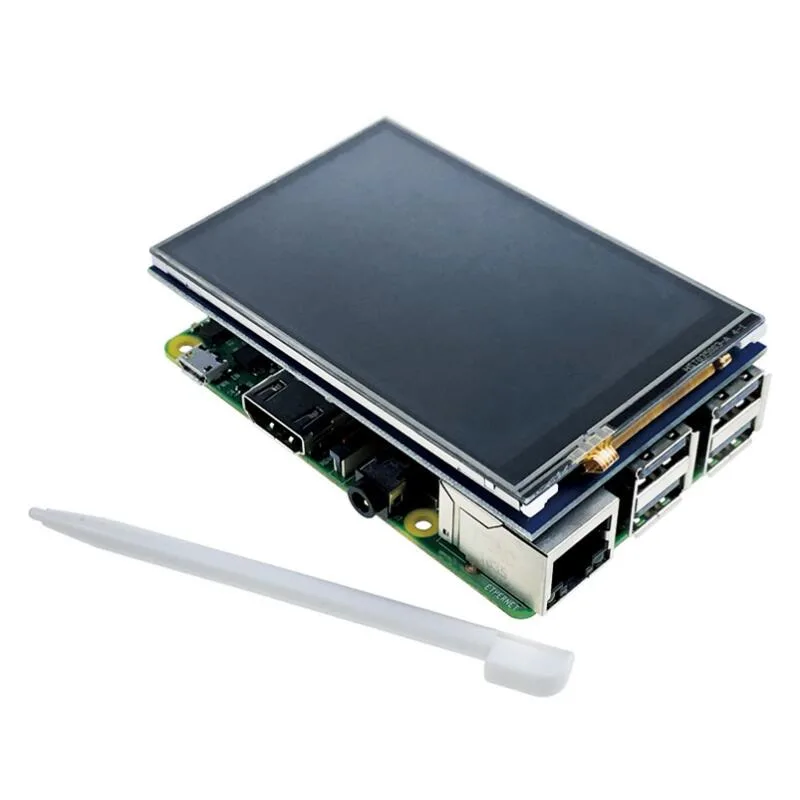

Compatible and has inserts directly into all versions of the Raspberry Pi motherboard

Product Parameter

Size：3.5 inch

SKU:MPI13501

Displays the interface：SPI

Drive IC:HX8357D

Resolution：480*320（dots）

options：1/No Touch; 2/With Touch

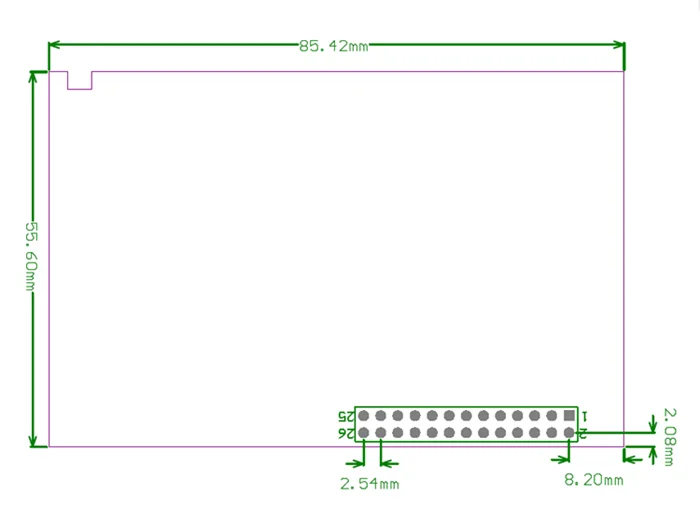

outline dimension：85.42*55.60mm

Product weight: about 78g

consumption ：0.13A*5V

Compatible with raspberry pi  4B/3B+/3B/2B/B+/B/A+/A  Full series version

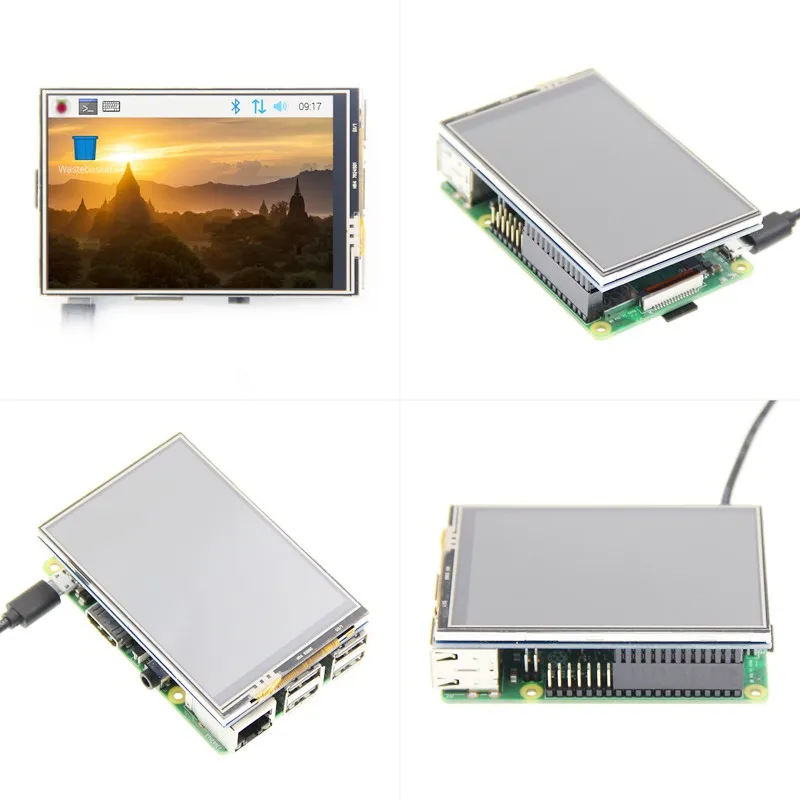

Same size as raspberry pi, perfectly compatible and can be directly inserted into any version of raspberry pi (Raspberry Pi A, A+,B, B+,2B, 3B, 3B+,4B)

Notice:

when you receive the product will find a layer of protective film on the screen, need to be tear down, the scratches above the protective film is because of the tested scratches, each product will be tested before delivery, after the test can send it out, so please do not care too much about the scratches on the protective film, jut tear it off and use.

Touch screen calibration

This LCD can be calibrated using a program called xinput_calibrator

Install it with the commands:

cd LCD-show/

sudo dpkg -i -B xinput-calibrator_0.7.5-1_armhf.deb

Click the Men button on the task bar, choose Preference -> Calibrate Touchscreen.

Finish the touch calibration following the prompts. Maybe rebooting is required to make calibration active.

You can create a 99-calibration.conf file to save the touch parameters (not necessary if file exists).

/ect/X11/xorg.conf.d/99-calibration.conf

Save the touch parameters (may differ depending on LCD) to 99-calibration.conf

How to rotate the display direction

Step 1，If the driver is not installed, execute the following command (Raspberry Pi needs to connected to the Internet):

sudo rm -rf LCD-show

git clone https://github.com/goodtft/LCD-show.git

chmod -R 755 LCD-show

cd LCD-show/

sudo ./LCD35-show

After execution, the driver will be installed.

Step 2，If the driver is already installed, execute the following command:

cd LCD-show/

sudo ./rotate.sh 90

After execution, the system will automatically restart, and the display screen will rotate 90 degrees to display and touch normally.
（ ' 90 ' can be changed to 0, 90, 180 and 270, respectively representing rotation angles of 0 degrees, 90 degrees, 180 degrees, 270 degrees）
If the rotate.sh prompt cannot be found, use Step 1 to install the latest drivers
