Package include:

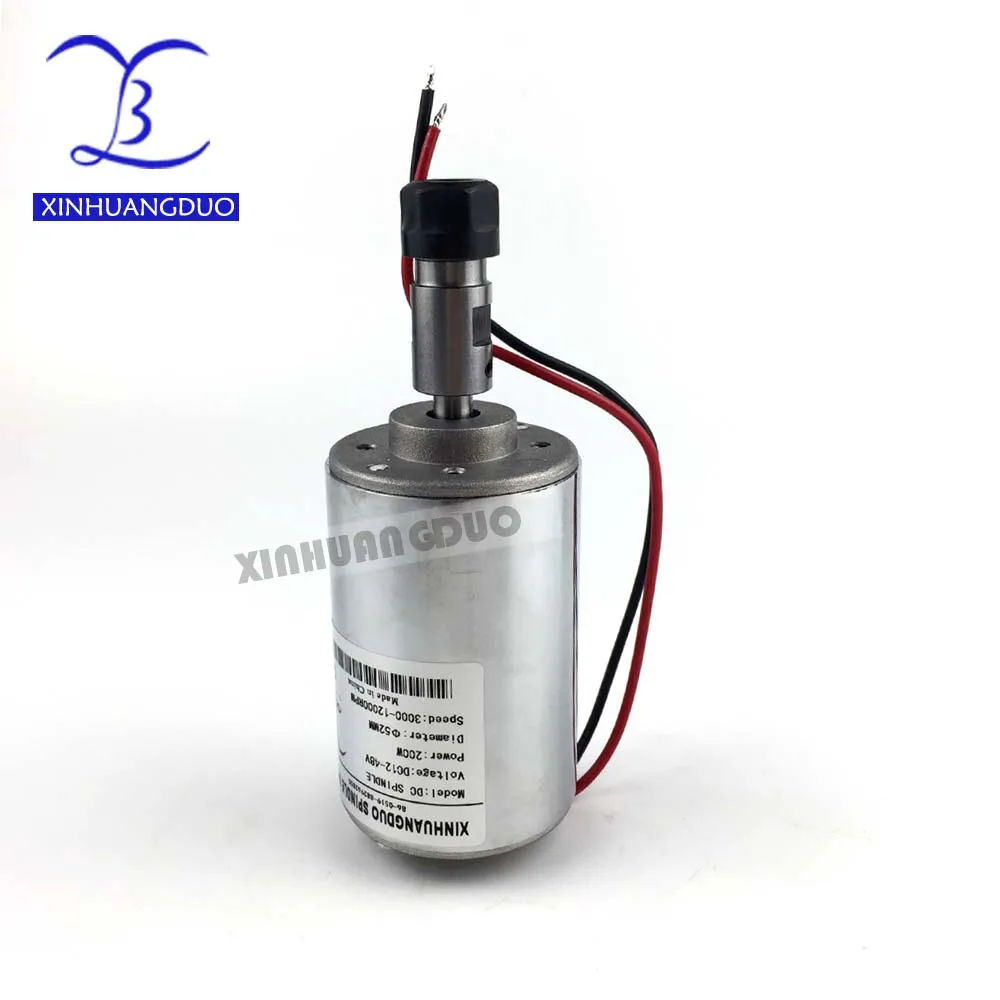

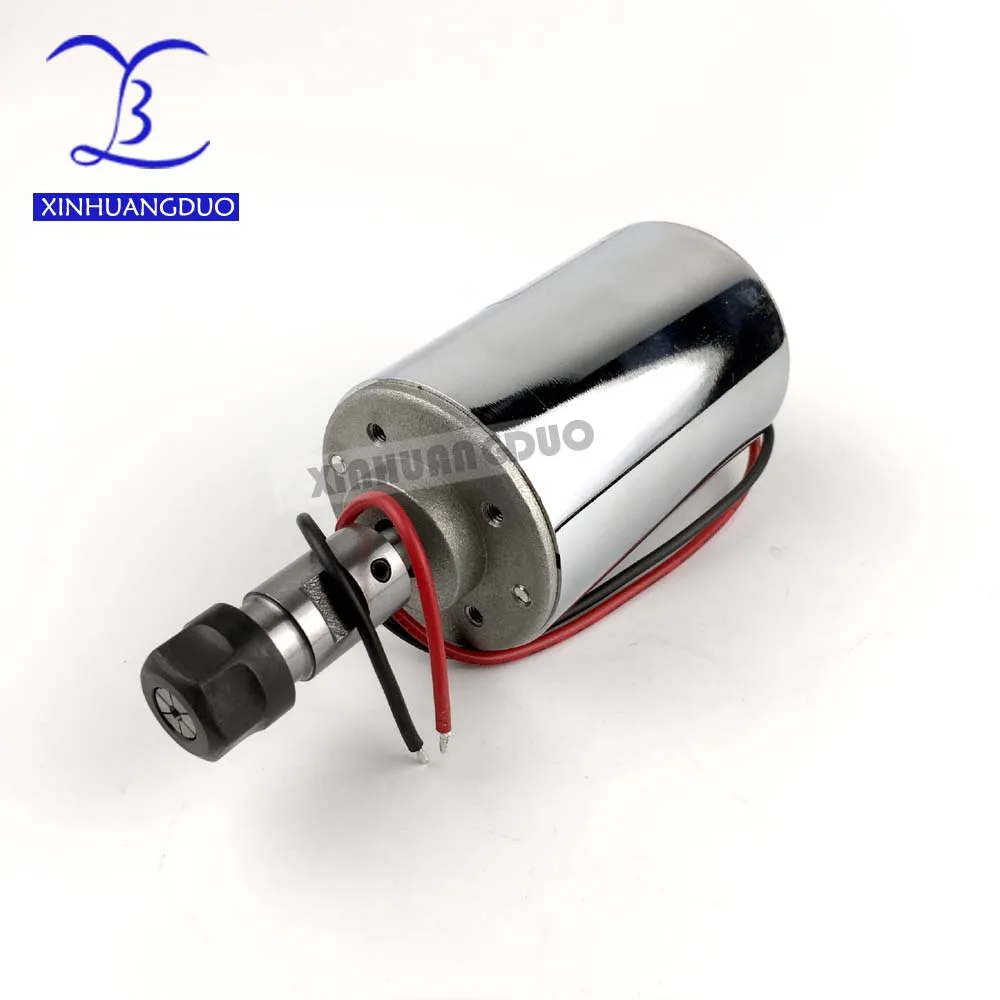

·         1PCS x 200W spindle motor (ER11-3.17MM)



Working voltage :12-48VDC

Power: 200W

Speed :3000-12000RPM       (12v-3000rpm,24V-6000rpm,36V-9000rpm  .48V-12000rpm)

Torque:300mN.m

Insulation resistance:> 2 megohms

Dielectric strength: 400V

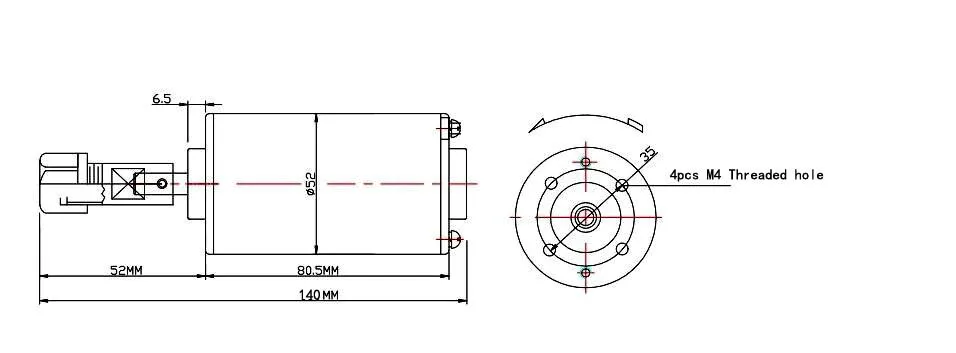

Diameter: 52mm

Chuck Part Length: Arbor parts 35mm, (including nuts and sandwich 43mm)

Part chuck diameter: 16mm

Motor length: 140mm (including gripping parts and motor)

Spindle runout of about :0.02-0.03.

Can be used for engraving metal or non-metal and other materials.

If the motor needs to work long hours, please install the fan forced cooling.
