Description
        - Brand New

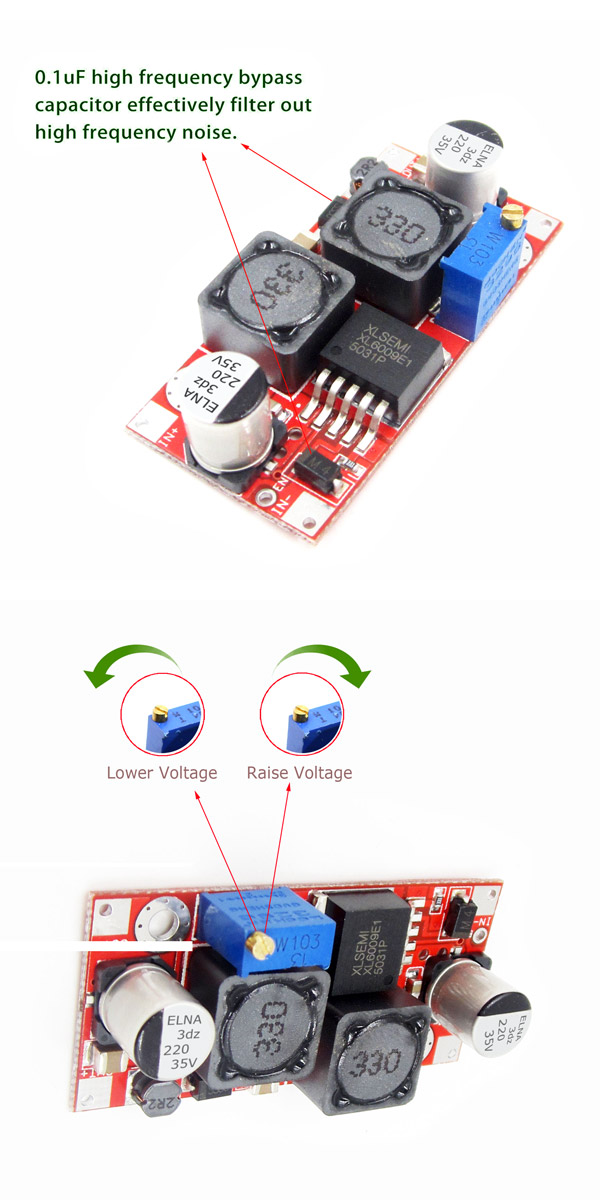

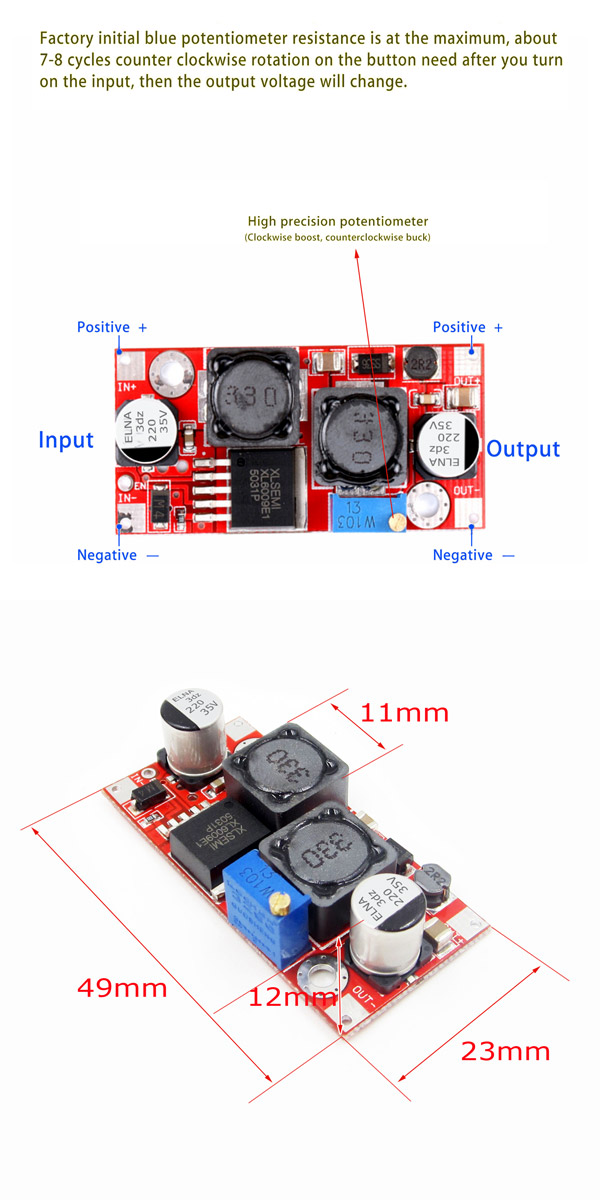

        - DC-DC Boost Buck adjustable step up down Converter XL6009 Module
        - For 12V electrical work , this automatic buck module takes care of all your problem
        - Regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized at 12V
        - Broader input voltage from 5V ~ to 32V
        - Built- 4A efficient MOSFET switches enable efficiency up to 94%(LM2577 current is 3A)
        - High switching frequency of 400KHz, the ripple is smaller and smaller(LM2577 freq. is only 50KHz)
        - With 64 fixing screw holes, diameter : 3mm
        - Module with input and output interfaces, support for cascading multiple modules
Description
        - Model Specification: DSN6000AUD Automatic Buck module
        - Module Properties: Non- isolated boost (BOOST)
        - Rectification: Non- Synchronous Rectification
        - Input Range: 3.8V ~ 32V
        - Output Range: 1.25V ~ 35V
        - Input Current: 3A ( max )
        - No-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage ,
    the greater the load current . )
        - Conversion efficiency: < 94% ( greater the pressure , the lower the efficiency )
        - Switching frequency:400KHz
        - Output Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple )
        - Load Regulation:± 0.5%
        - Voltage Regulation:± 0.5%
        - Operating Temperature: -40 Cel. ~ +85 Cel.
Included in this package

        - 1X XL6009 Chipset DC Step Down
