RF Signal Generator RF Signal Generator Frequency Sweep High Quality MHz MHz/NEW
DESCRIPTION


Features:
* Brand new and high quality
* Made of high-quality materials, sturdy and practical

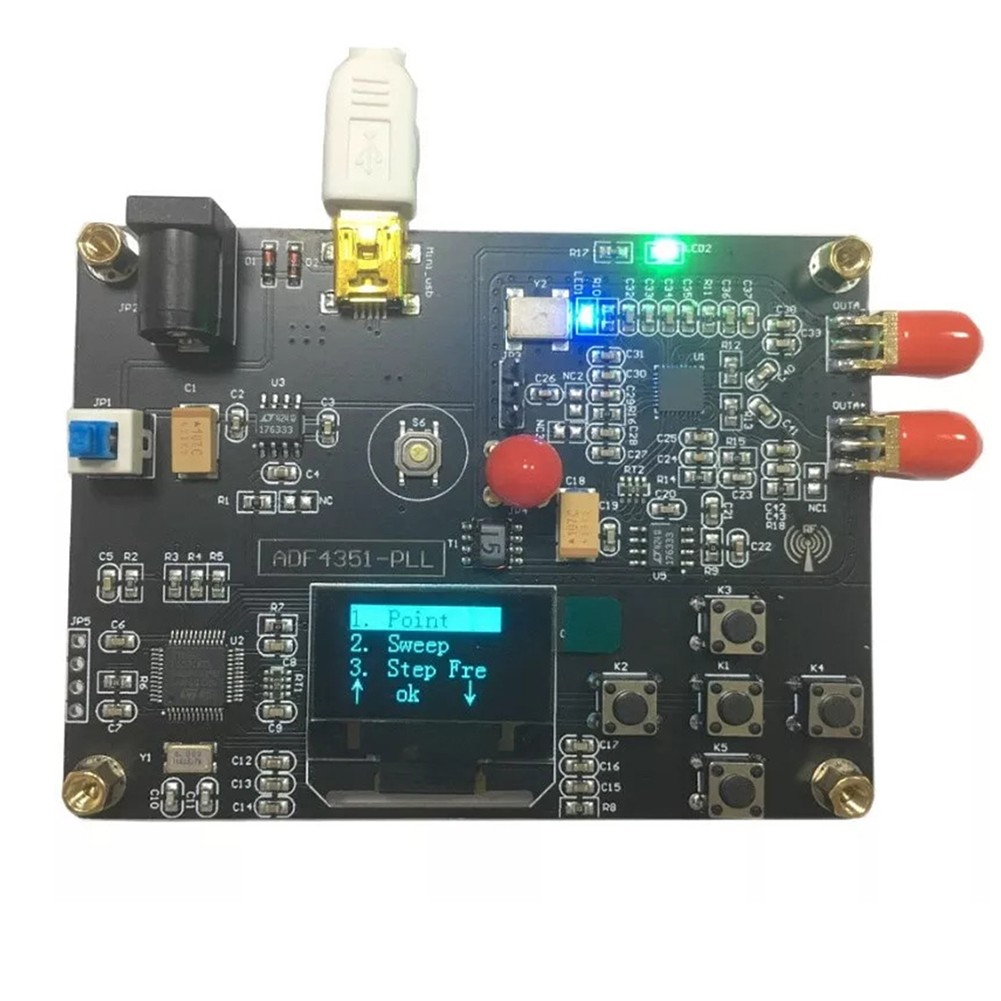

* 35MHz-4400MHz RF signal generator ADF4351 module sweep generator PLL with for OLED display.

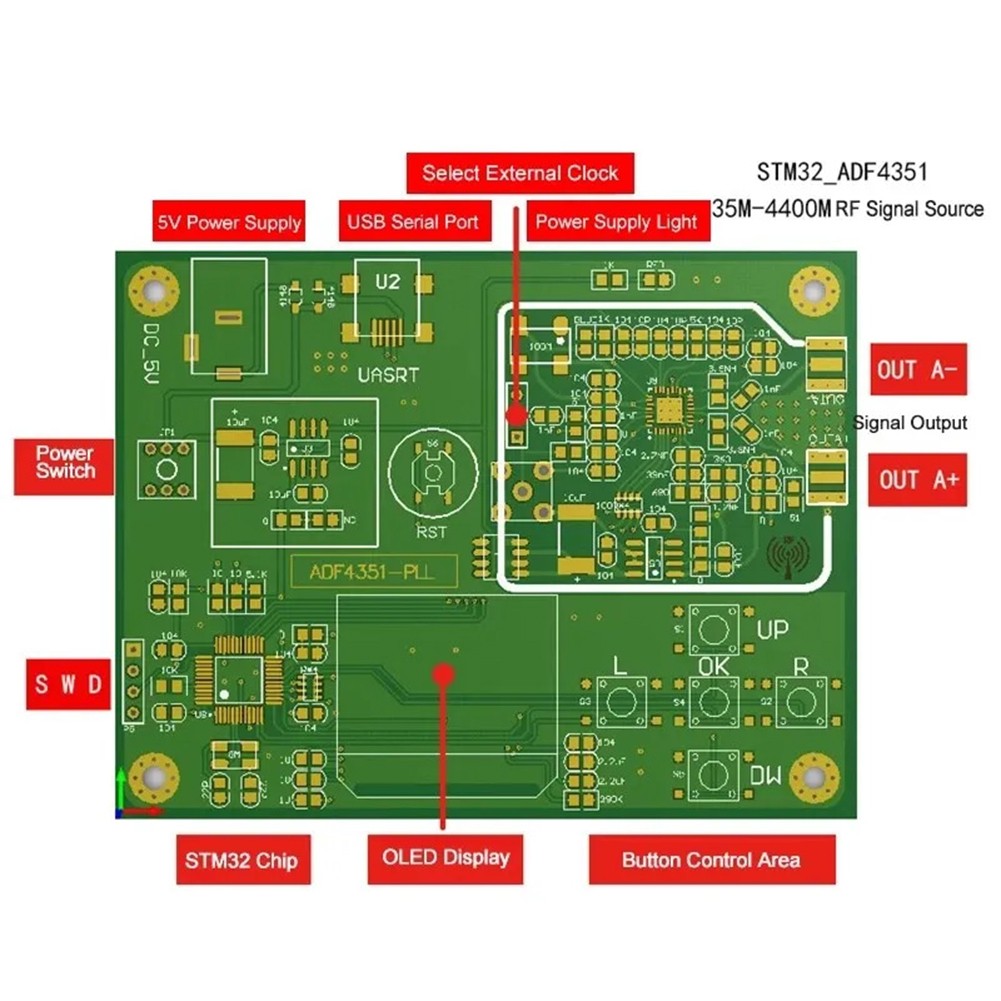

* For the ADF4351 ADF4350 integrated phase-locked loop, this phase-locked loop module with for OLED display, host computer USB& serial port, integrated button operation, wide voltage power supply, and good human-computer interaction interface is launched. The module can realize frequency output of 35MHz-4.4GHz, basic functions such as point frequency, frequency sweep, and frequency hopping.

Specification:
Part name: Signal generator
Material: PCB circuit board
Colour: Black
Size: 88mm* 67mm
Power supply: 5V-15V(DC 5.1MM); 5V(USB)
Bandwidth: ADF4351: 35MHz-4.4GHz(35MHz-4400MHz); ADF4350: 137MHz-4.4GHz
Module step: 100KHz(minimum)
Frequency error:±1KHz
Output: OUTA and OUTB two channels
Module phase noise: better than-100dBc at 10KHz(noise changes with frequency phase)
Module output power: 7dBm(maximum)
Module interface: for STM32 USB external communication port can be configured as USB or analog serial port(default)
Module program download: SW module, three-wire(GND SWCLK SWDIO)

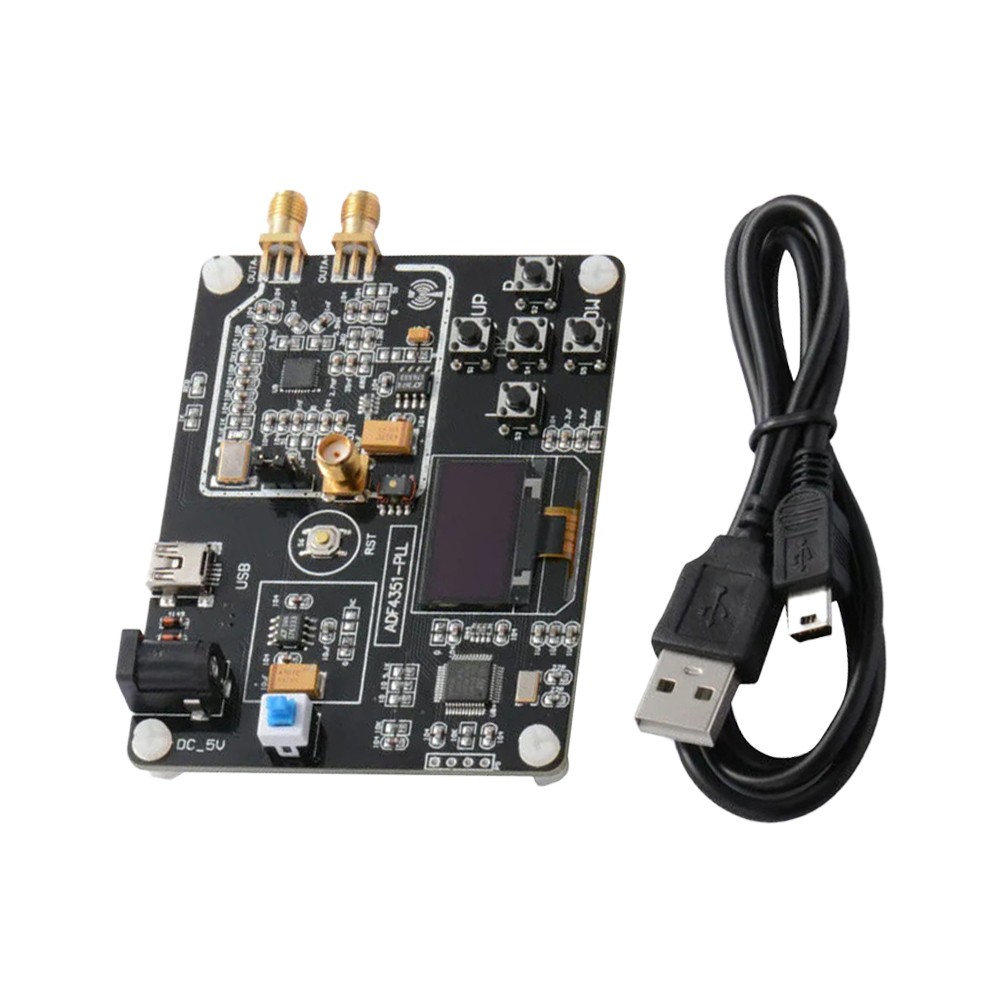

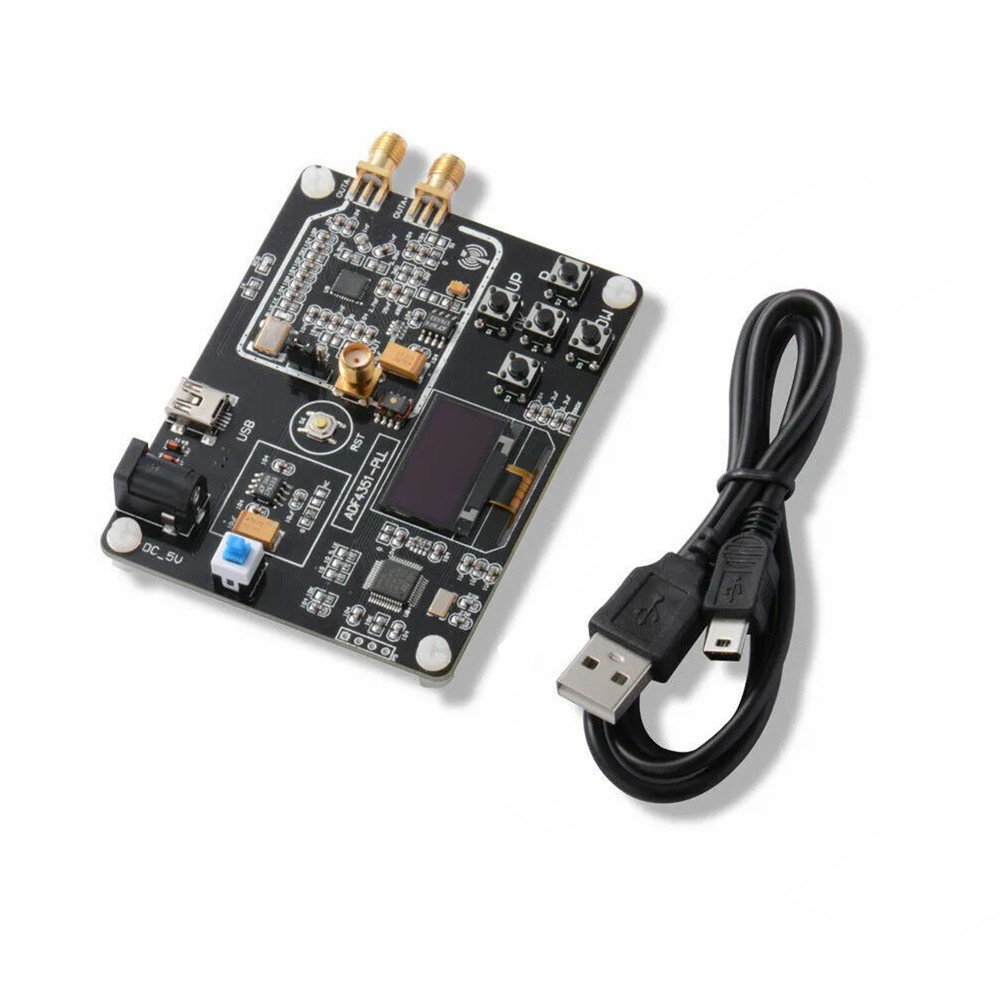

Package Contents:
1 x signal generator
1 x data cable

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
