1.Features

SIZE	1.8inch
Display Mode	a-TFT
Display Format	Graphic 128RGB*160 Dot-matrix
Input Data	SPI interface
Drive IC	ST7735S
Dimensional outline	35(W)56 (H)3.45+/-0.1(T)mm
Resolution	128RGB*160 Dots
LCD Active area	28.03 (W)*35.04 (H)
Pixel size	0.219(W)*0.219(H)
Viewing Direction	12 o’clock
Operating Temperature	-20～70°C
Weight	9.6

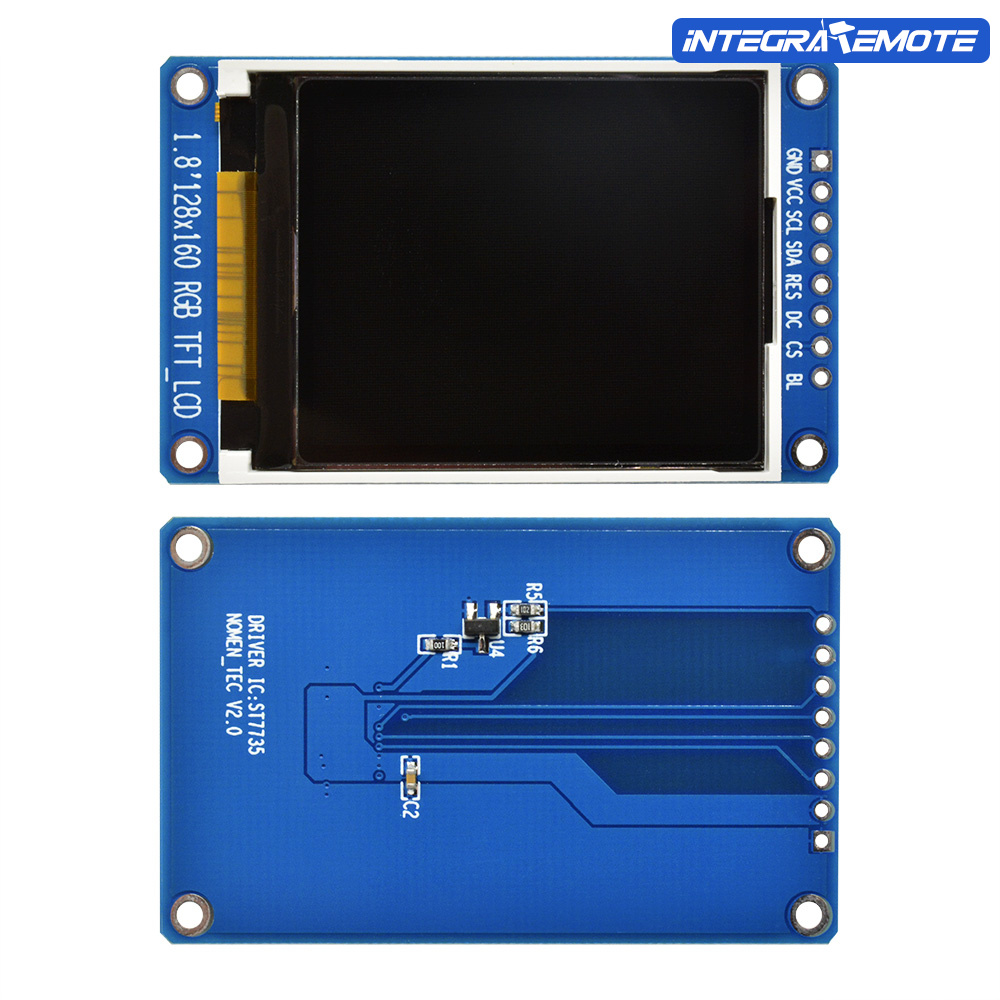

2.Pin Descriptions：

PIN No	Symbol	Description
1	GND	Ground
2	VCC	Power 3.3V
3	SCL	Serial clock pin.
4	SDA	Serial data input
5	RES	LCM Reset pin This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.
6	DC	Data/Command Control
7	CS	Chip Select
8	BLK	Backlight control pin

3. Connected to the microcontroller

Package Included:

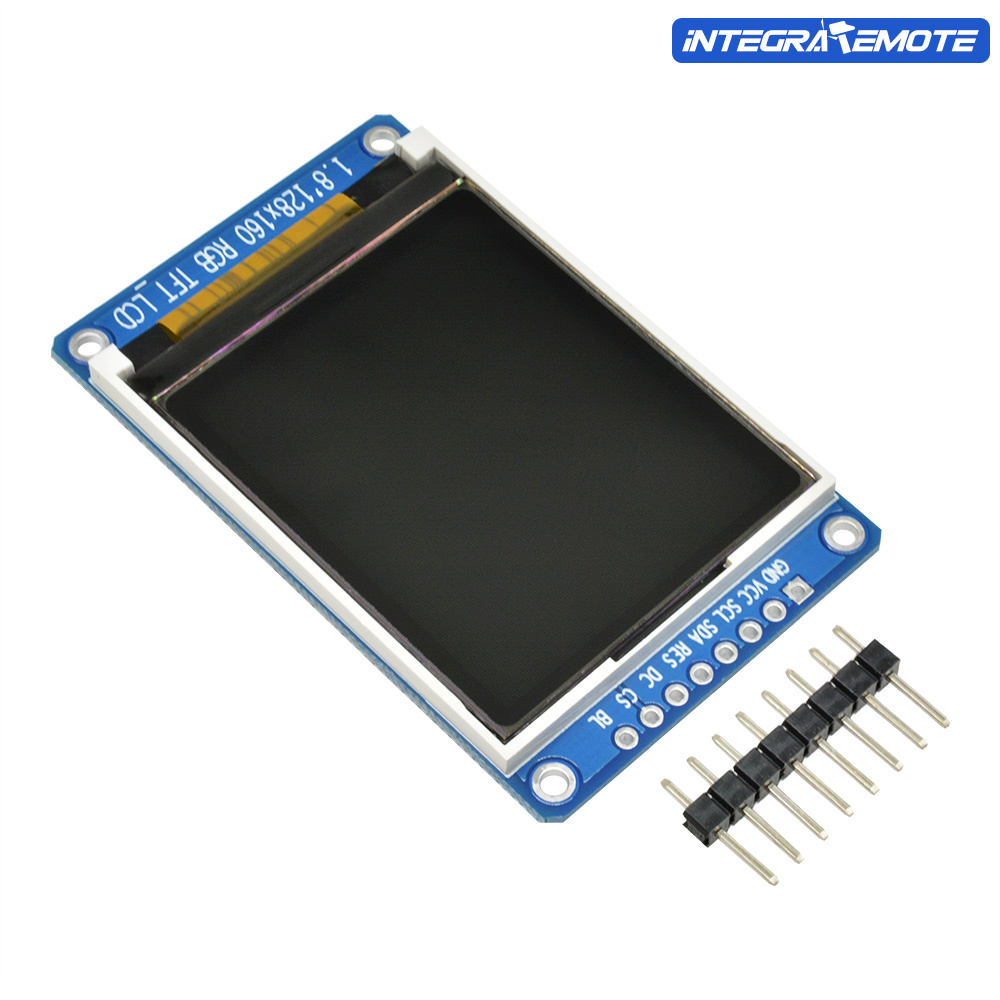

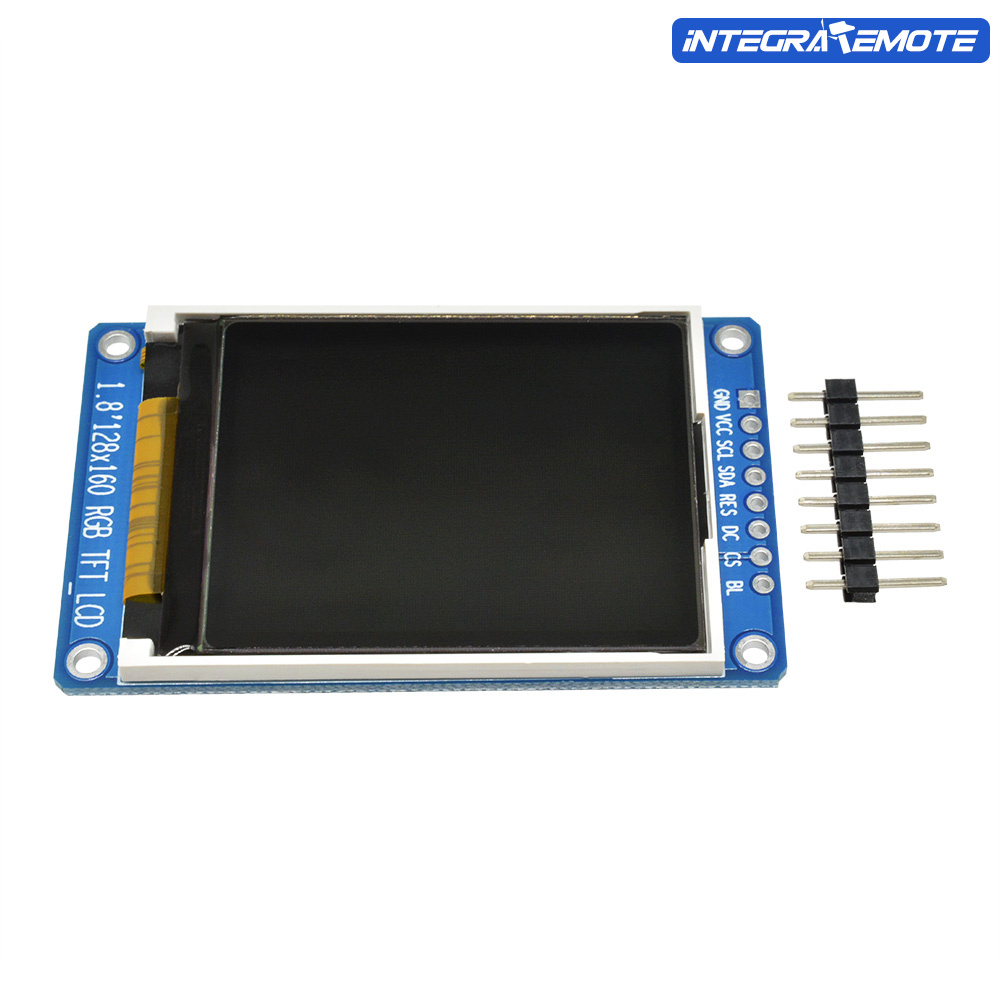

1 x 1.8" ST7735S SPI TFT LCD Display Module
