Product Description
DC 0.9V to DC 5V
DC 1V to DC 5V
DC 1.2V to DC 5V
DC 1.5V to DC 5V
DC 1.8V to DC 5V
DC 2V to DC 5V
DC 2.5V to DC 5V
DC 2.6V to DC 5V
DC 2.7V to DC 5V
DC 3V to DC 5V
DC 3.3V to DC 5V
DC 3.6V to DC 5V
DC 3.7V to DC 5V
DC 4 V to DC 5V
DC 4.2V to DC 5V
DC 4.5V to DC 5V
DC 4.8V to DC 5V
Module No.: CE025

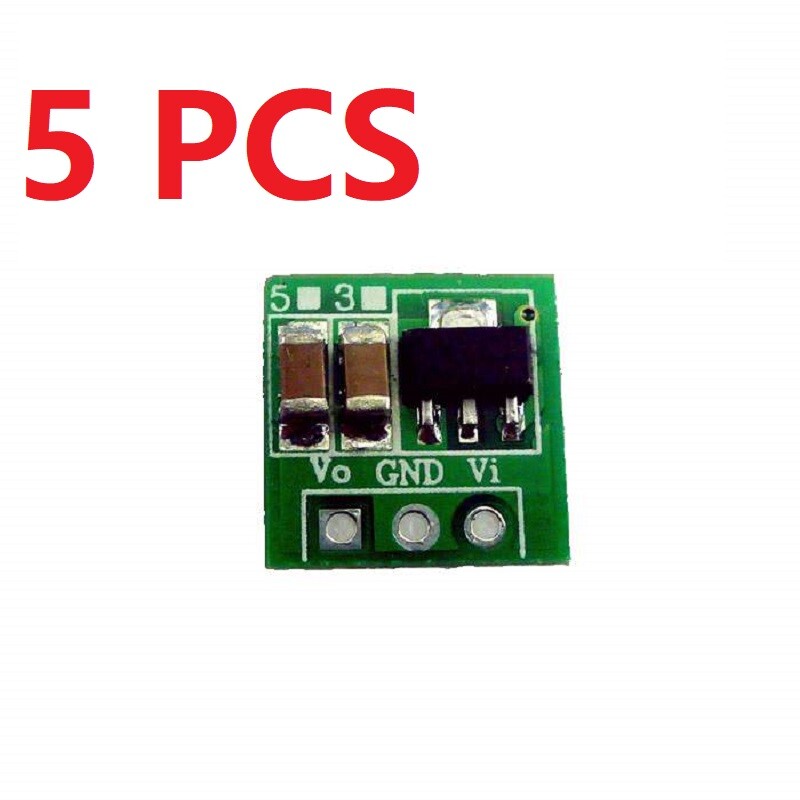

Packing list: 5 PCS 0.9V-5V TO 5V Step-UP Voltage Converter Module
Description:
Input voltage 0.9 ~ 5V, output 5V
Maximum output current: 500 MA,
Start Voltage 0.9V, Output Current 10MA
INPUT 1-1.5V, OUTPUT 5V 50-110MA;
INPUT 1.5-2V, OUTPUT 5V 110-160MA;
INPUT 2-3V, OUTPUT 5V 160-400MA;
INPUT above 3V, OUTPUT 5V 400-500MA;
DC-DC Boost module working frequency 180KHZ. efficiency is normal 85% .
Operating ambient temperature : -25~+85 Degrees Celsius
2.54mm pin pitch,Arduino UNO Breadboard friendly.
Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small)
Weight : about 1.2g(Very light)
Applications：
①Battery Booster equipment
②Wirels Module, NRF24L01 CC1101 CC2500 SI4432 etc.
③Development Board,FPGA/CPLD Arduino 8051 AVR STC etc.
④Arduino Breadboard Raspberry Pi
⑤VCR
⑥PDA
⑦LED Lighting
⑧Wireless communication equipment
⑨MP3/MP4 player
⑩Audio equipment
Attention :

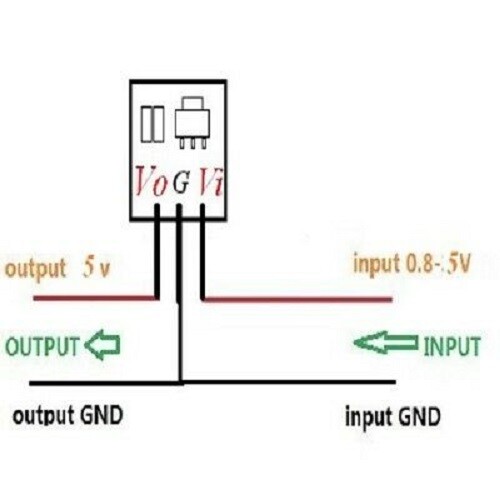

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
