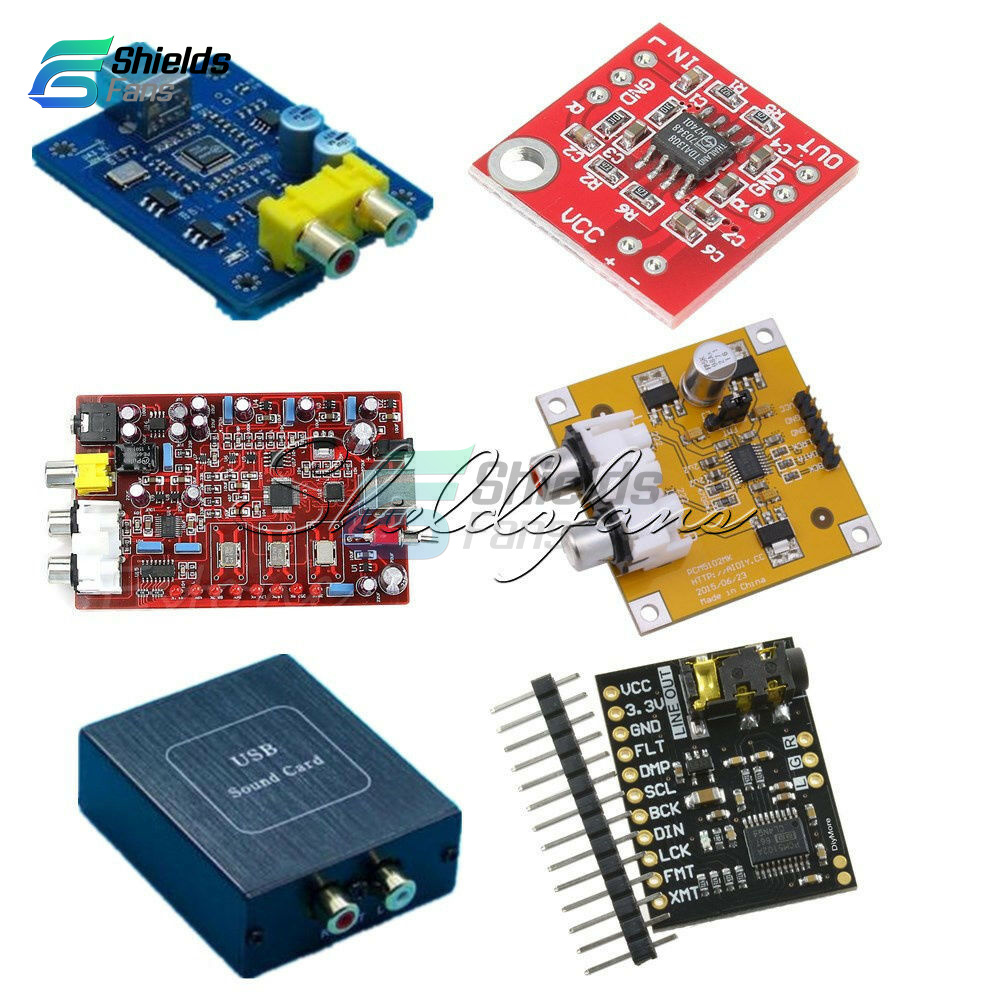

Description:

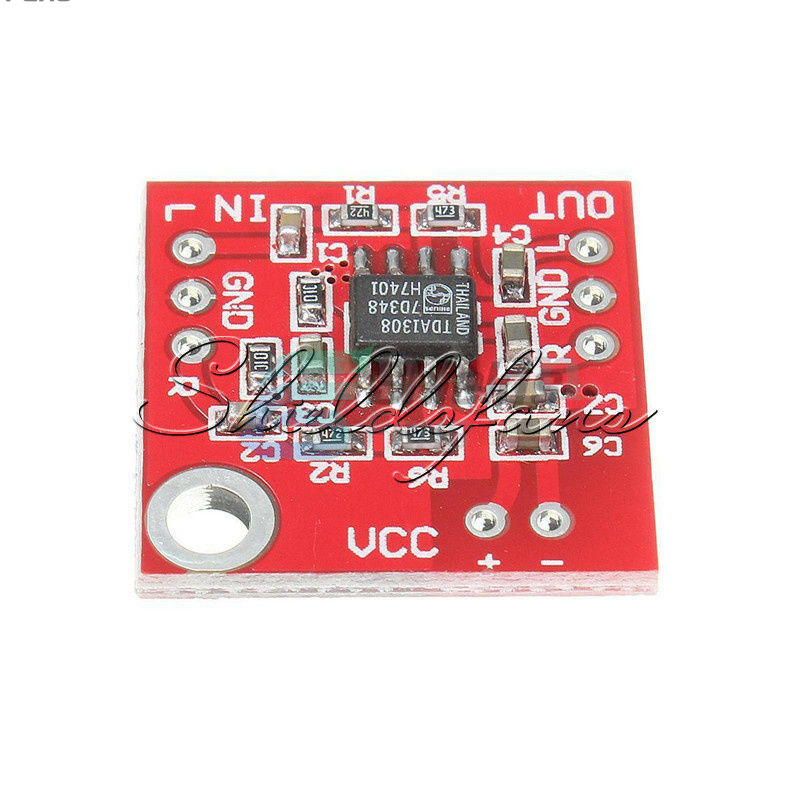

TDA1308 Power Amplifier Board:
Features:
1.Wide temperature range
2.No switch ON/OFF clicks
3.Excellent power supply ripple rejection
4.Low power consumption
5.Short-circuit resistant
6.High performance
7.high signal-to-noise ratio
8.high slew rate,low distortion
9.Large output voltage swing.
10. Working voltage:3V-6V
11. Size:20*20mm
Package Included: 1x DA1308 Headphone Amplifier Board

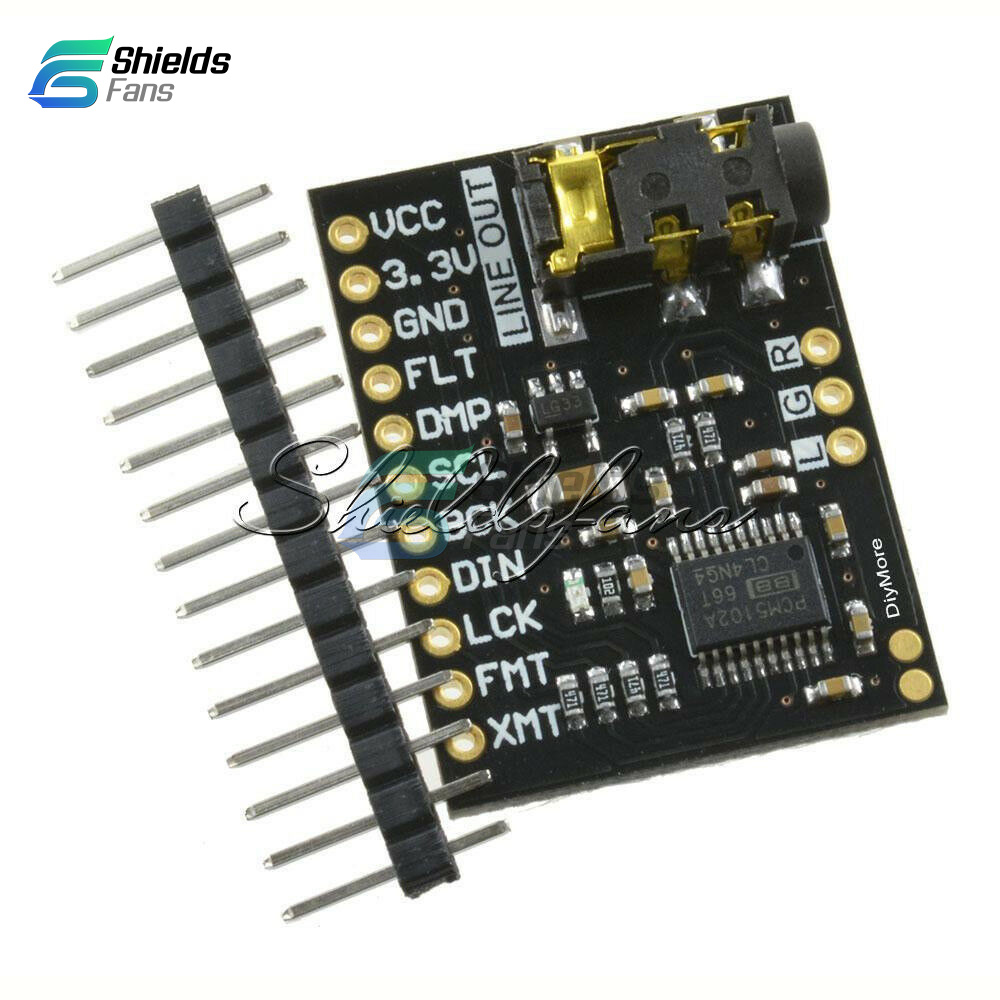

PCM5102A Module
Features:
24-bit audio at 192KHz
Line out stereo jack
pHAT format board
Uses the PCM5102A DAC to work with the Raspberry Pi I2S interface
Package included: 1 x PCM5102A DAC Decoder

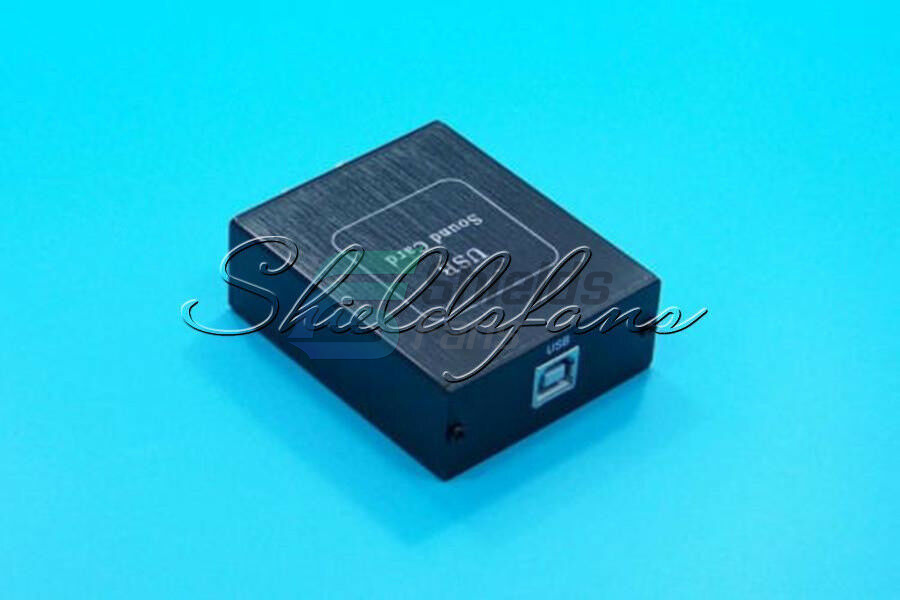

SA9227/PCM5102A Decoder+ Case:
Features:
Input :5 V (USB supply),
THD+N: <0.005% (RL = 10 kω)
independence: >95 dB
DRC: >95 dB
USB sample rate:16-32BIT/32-284KHZ
USB support: WINXP/WIN7/WIN8, MAC OS 9/OS X, android 4.1 or more(OTG)
Size: 68 * 57 * 24MM (excluding terminal).
Package Included: 1 x SA9227 + PCM5102A Decoder with Case
PCM5102 DAC Decoder:
Features:
PCB SIZE：4.8x4.8cm
Power supply：DC 5V-10V
support I2S/left-justified signel directly input (can switch by hand)
The maximum support 32 Bit 384K Sampling rate！
Can setting two FLT filter mode (NOM normal mode or LOW Delay mode)-Need switch by hand!
SNR :112db
Distortion:-93db
Directly output is 2.1V RMS audio voltage ,High frequency is pure ,Low frequency is satiation ,Beyond ES9023
Note：BCK and DATA marked inverse!When using pls make BCK as DATA , DATA as BCK
ASSEMBLED PCM5102 DAC decoder I2S player 32bit 384K beyond es9023
Package Include: 1 x PCM5102 DAC decoder
PCM5102/TDA1308 Decoder:
Features:
Use original new XMOS + PCM5102 + TDA1308
Signal main circuit electrolytic capacitors used in Taiwan brand, the main filter capacitor using imported aluminum electrolytic capacitors, to ensure a steady flow of power to support strong.
Accuracy of ± 1% resistor selection of chip resistors, ensure the machine a good signal to noise ratio.
1.6mm thick sheet using double-sided PCB, 2.0 oz copper thickness, HASL whole process to ensure that the size of the current through the good performance. PCB-class quality.
Support 32bit 384K
Input Voltage 5V , it has selector switch ,it is recommended to use the power .Because USB supply current fine , poor filter will affect the sound quality .
PCB SIZE：(L*W)10.00*6.60cm/3.94"*2.60"
Note:Size may be a 0 to 2 cm error for manual measurement, which belongs to the normal phenomenon.
And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Included：1 x XMOS+PCM5102 + TDA1308 Decoder Board
SA9227/PCM5102A Decoder:
Features:
Input :5 V (USB supply),
THD+N: <0.005% (RL = 10 kω)
independence: >95 dB
DRC: >95 dB
USB sample rate:16-32BIT/32-284KHZ
USB support: WINXP/WIN7/WIN8, MAC OS 9/OS X, android 4.1 or more(OTG)
Package Include:1x SA9227+PCM5102A Decoder
